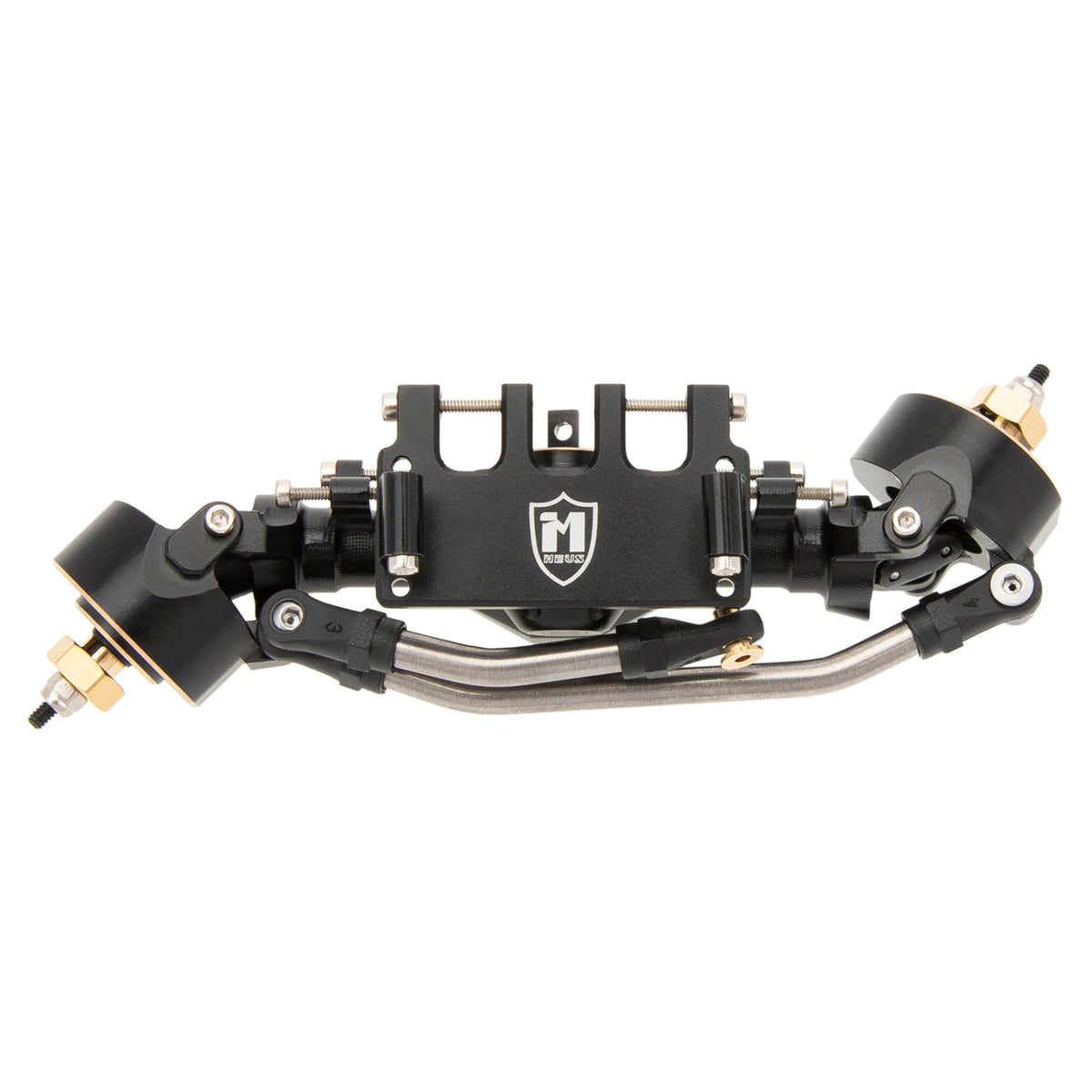

MEUS Racing Isokinetic 3-Section CVD Front & Rear Axles – 52° Steering, Wider +5mm for 1/24 RC Crawler

Upgrade your 1/24 RC crawler with MEUS Racing Isokinetic 3-Section CVD Axles

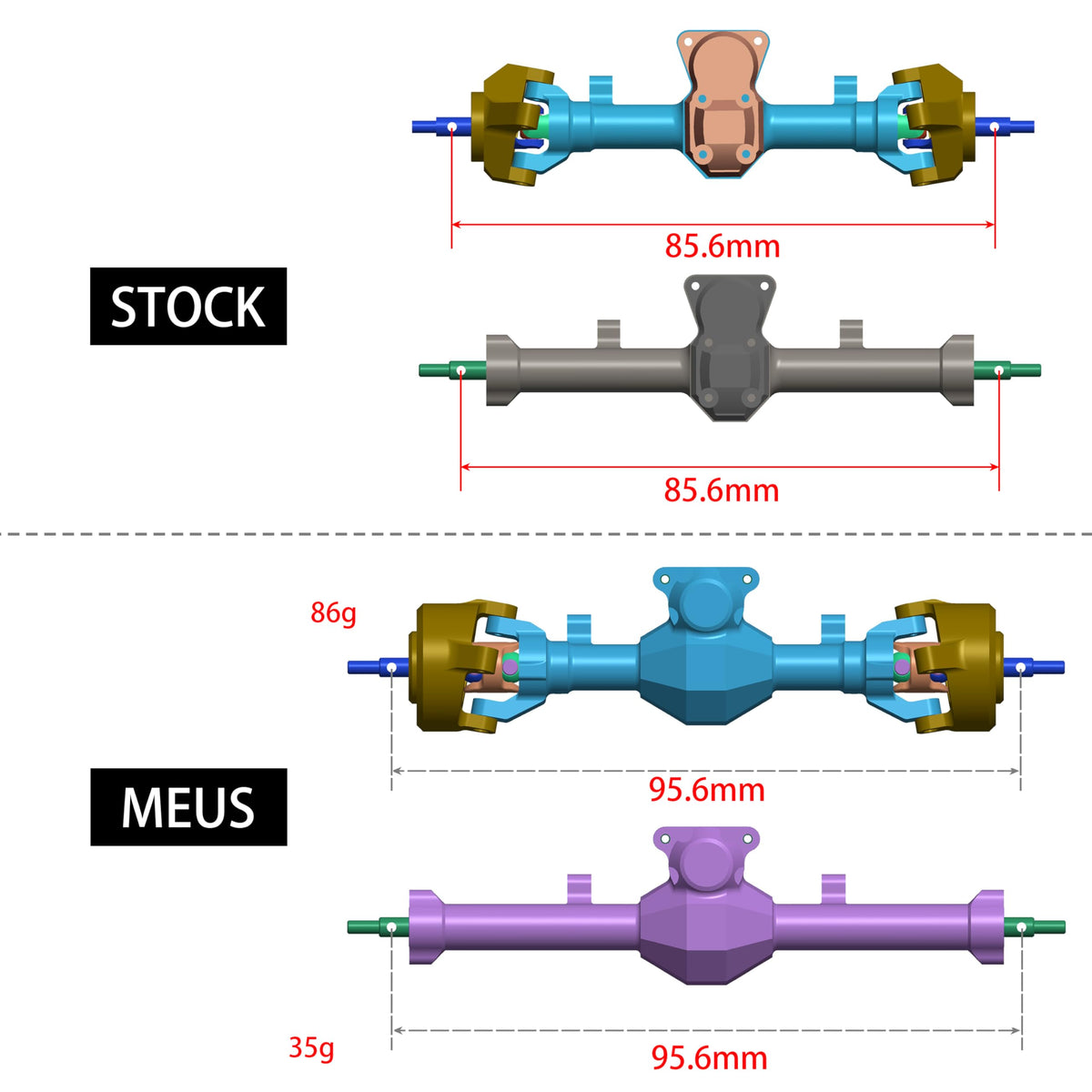

Designed for popular 1/24 platforms like the Axial SCX24 Deadbolt, C10, JLU Gladiator, and Bronco, these axles blend rugged materials with precise engineering. The front unit weighs about 85 g (3 oz) and the rear unit about 35 g (1.2 oz), creating a balanced yet responsive upgrade that enhances steering feel without overpowering weight on small-scale rigs.

Constructed from a mix of aluminum alloy and brass and finished with a durable anodized coating, the assembly not only looks premium but also withstands trail use. A US patent on the lsokinetic 3-section CVD design underscores the promise of smoother turns, especially when the steering angle reaches its upper limit. The system is capable of a 52° maximum steering angle, offering a wider range for tight technical sections and steady line control on open runs.

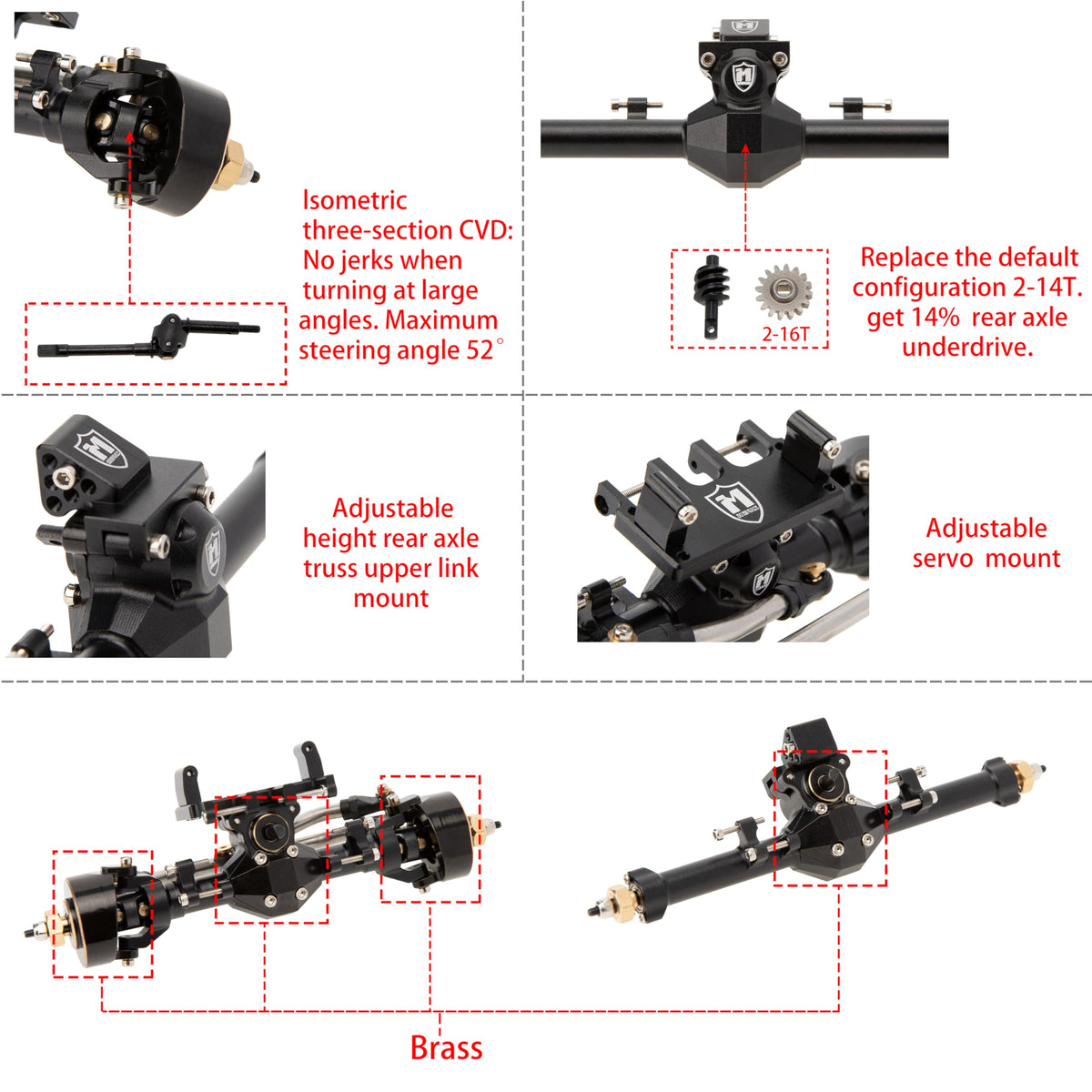

Key design benefits

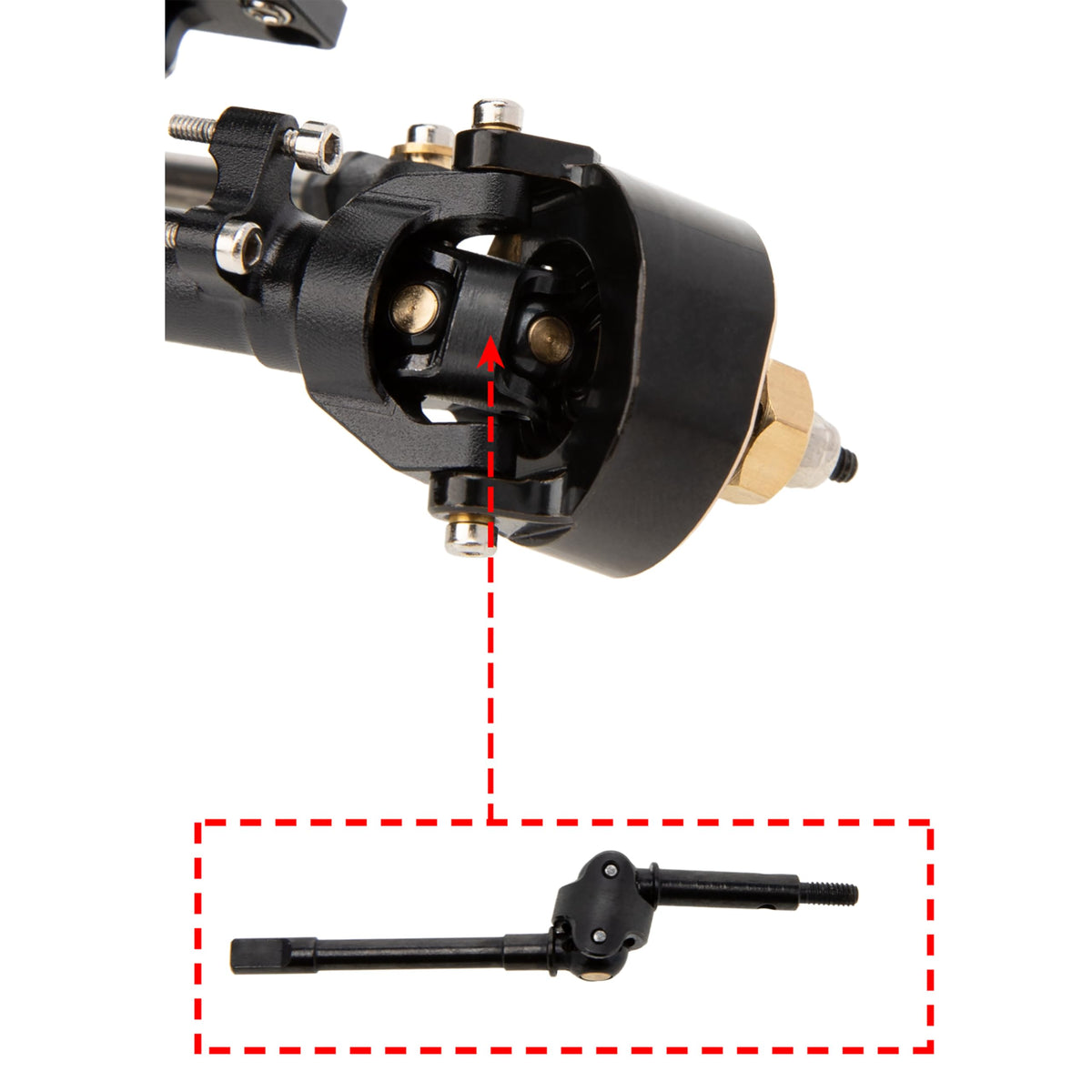

• Isokinetic 3-section CVD provides steadier turning feel and reduces abrupt torque changes at large angles.
• Premium materials (aluminum alloy and brass) with an anodized finish deliver durability and a refined look.
• Front and rear gear sets are upgraded to 2-14T for consistent drive characteristics; rear gears can be swapped to 2-16T for underdrive tuning.
• Diamond-cut diff covers add style and help with protection and heat dispersion during demanding sessions.

Gearing, tuning, and mounting options

By selecting the rear 2-16T gears, you can achieve roughly 14% underdrive, a tuning option that may influence how the rig handles during aggressive cornering and on uneven terrain. The front and rear 2-14T gears work together to keep drivetrain behavior predictable across varied traction conditions.

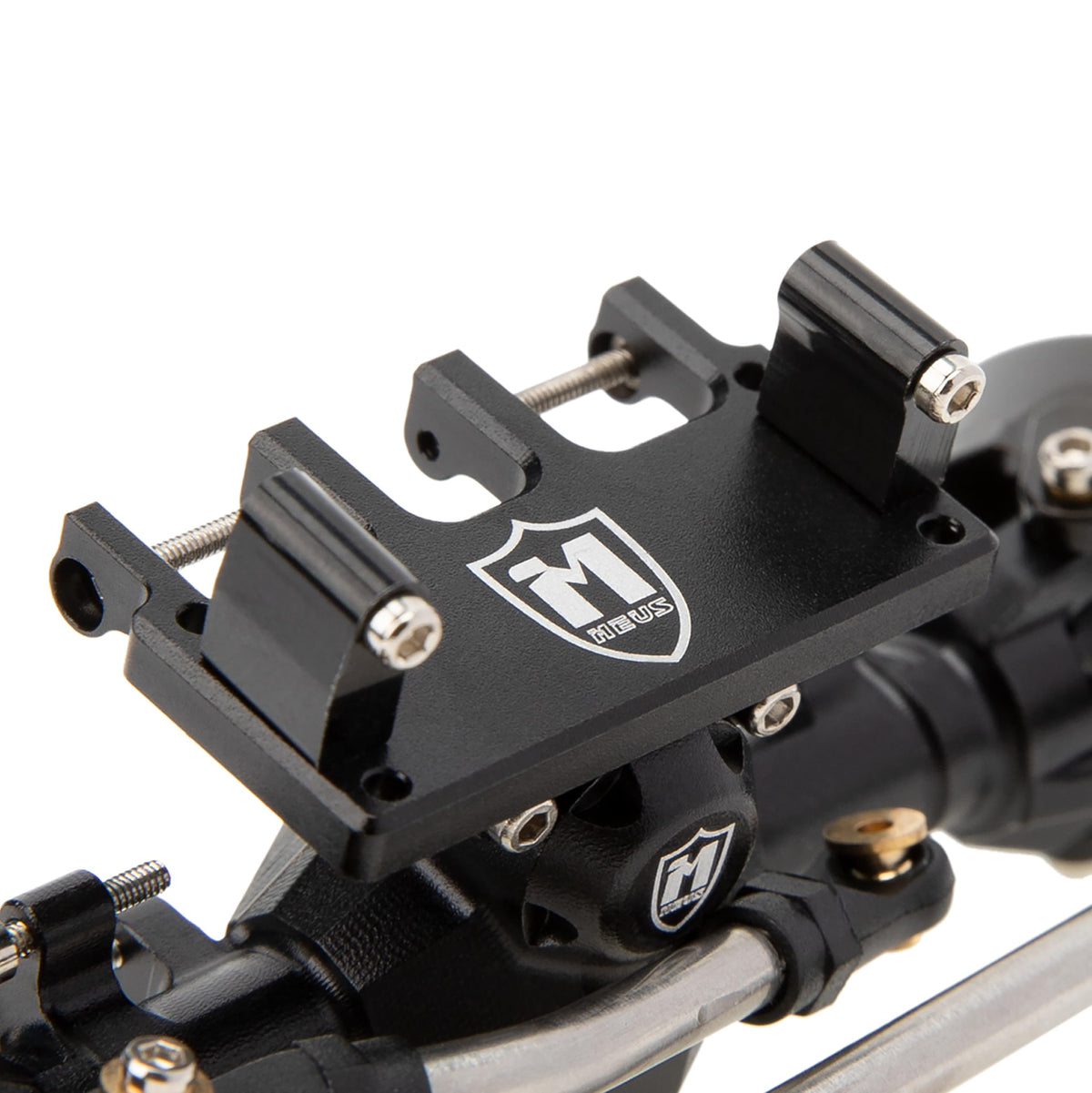

• High-torque adjustable servo mount supports robust servos for sharper, more responsive steering.
• Adjustable rear axle height with an upper link mount enables precise geometry tweaks.
• Included diff cover features a diamond-cut finish for durability and a touch of style.

Real-world use and expectations

In day-to-day trail runs, the combination of wider steering range, smoother angle transitions, and tunable underdrive can translate to calmer line choices through rock sections, better control on tight corners, and a more confident driving feel. As with any upgrade, actual performance can vary with setup, driving style, and terrain, so consider these components as enhancements to explore rather than guarantees of specific results.
