INJORA INJS022-360: 22kg.cm 360° Digital Servo + 25T Low-Profile Winch Spool for RC Crawlers

Overview

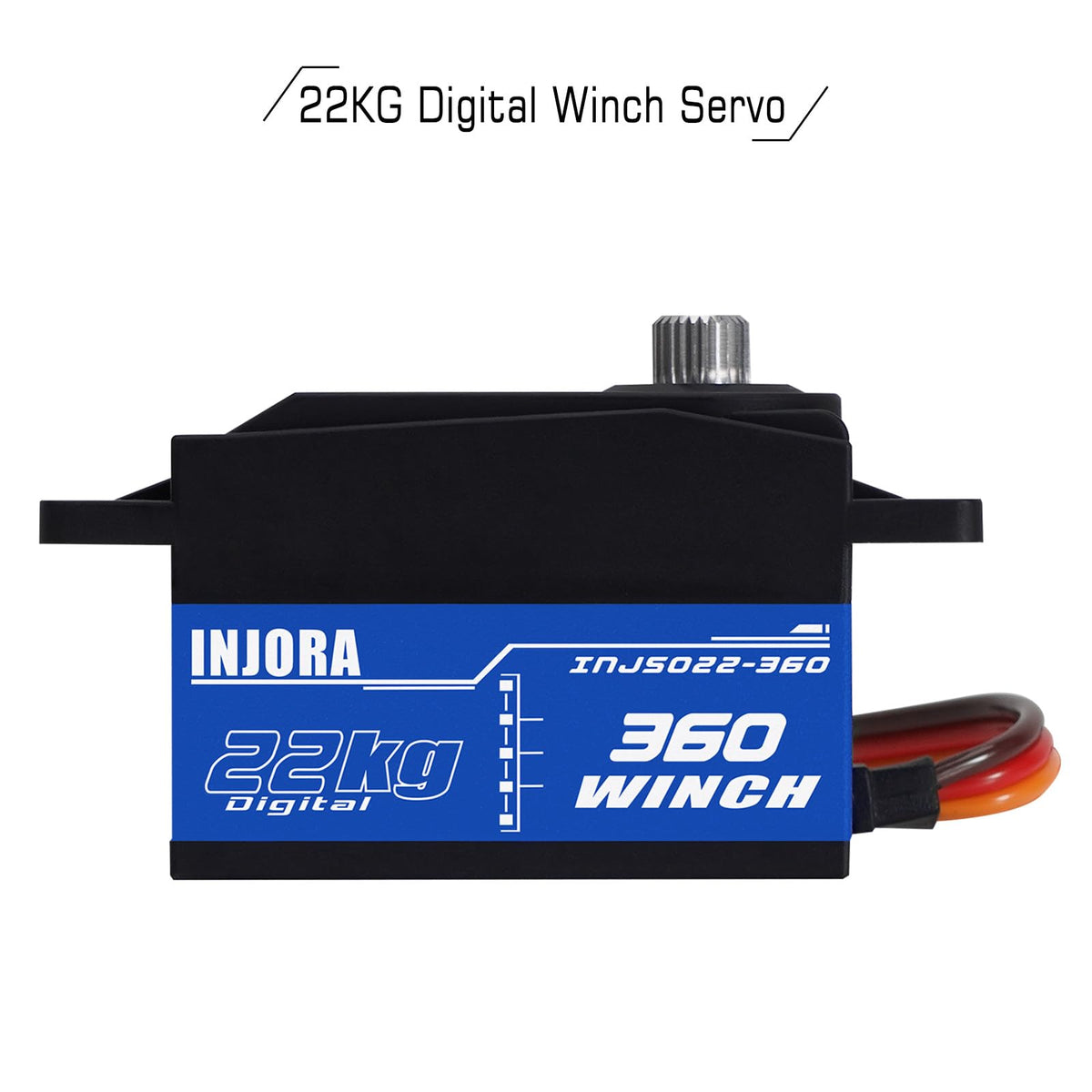

Meet the INJORA INJS022-360, a compact digital servo winch designed for 1/10 scale RC crawlers and boats. It combines a 360° continuous rotation with a core motor, delivering reliable torque and smooth operation across a broad voltage window of 4.8 to 6.0 volts. The 360 rotation lets you reorient the line without repositioning the chassis, while reinforced metal gears help keep operation quiet and durable on challenging terrain.

The 22 kg.cm stall torque at 6V provides solid performance when the line faces resistance. This unit emphasizes precision and control, with a compact form that fits tight mounts and lightweight builds. The integrated design keeps weight low while offering sturdy feel and dependable response during demanding runs.

Key features

• 22 kg.cm stall torque at 6V for capable winching under load
• 360° continuous rotation for smooth, unrestricted control

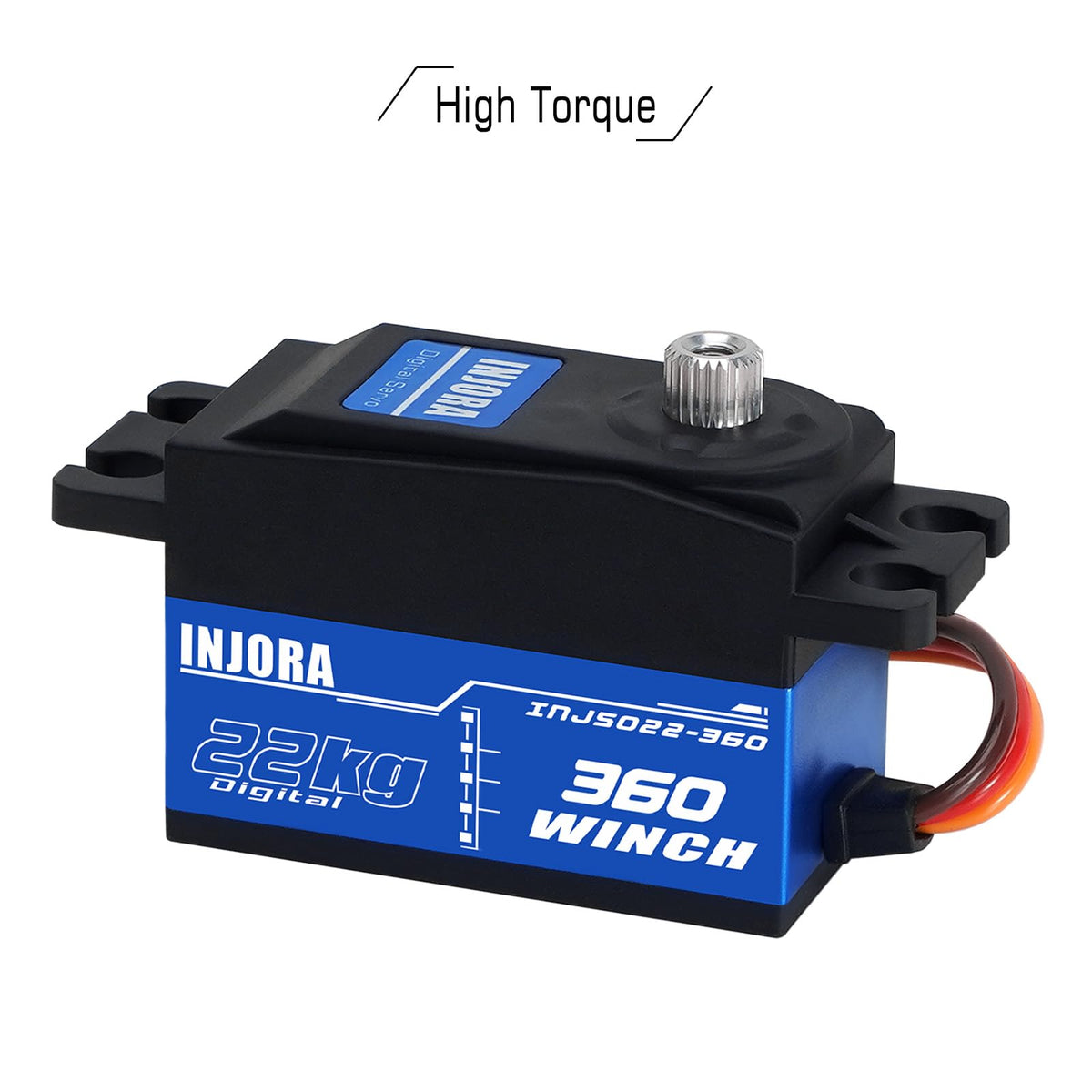

• Core motor with reinforced metal gears for durability and quiet operation
• Wide voltage range 4.8V–6.0V with speeds from 56 rpm to 67 rpm
• Aluminum winch spools plus standard and low-profile gear options for customization

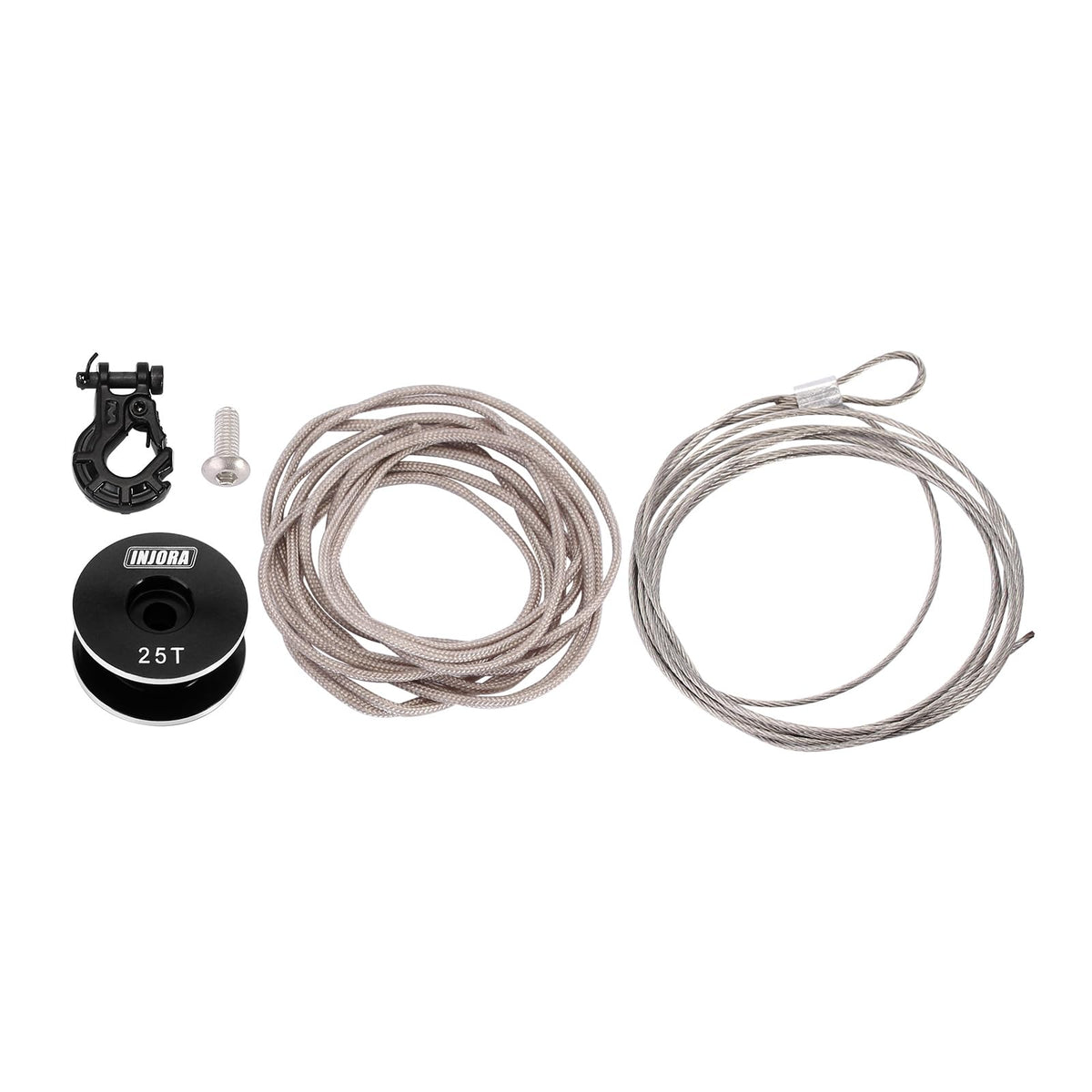

• Ropes included: nylon 116 cm and steel 96 cm for versatility

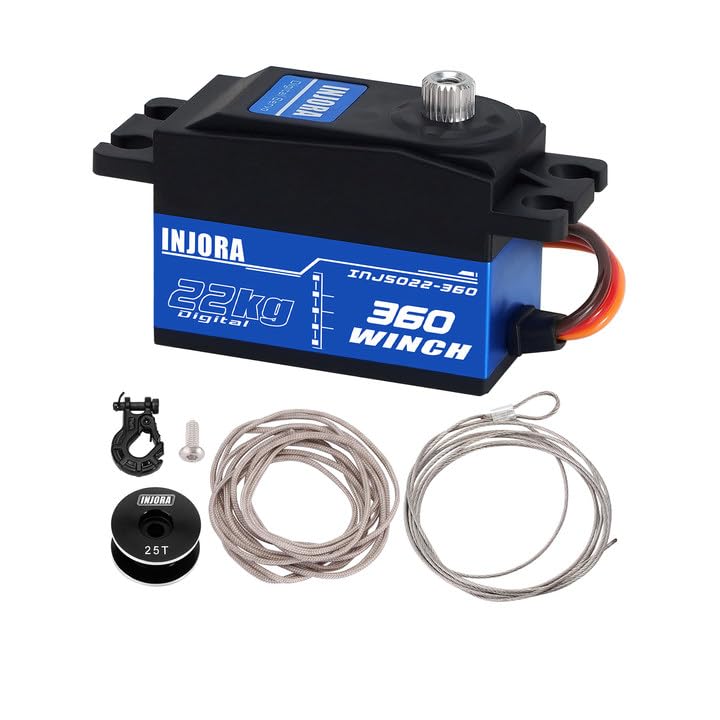

What’s included and specs you’ll notice

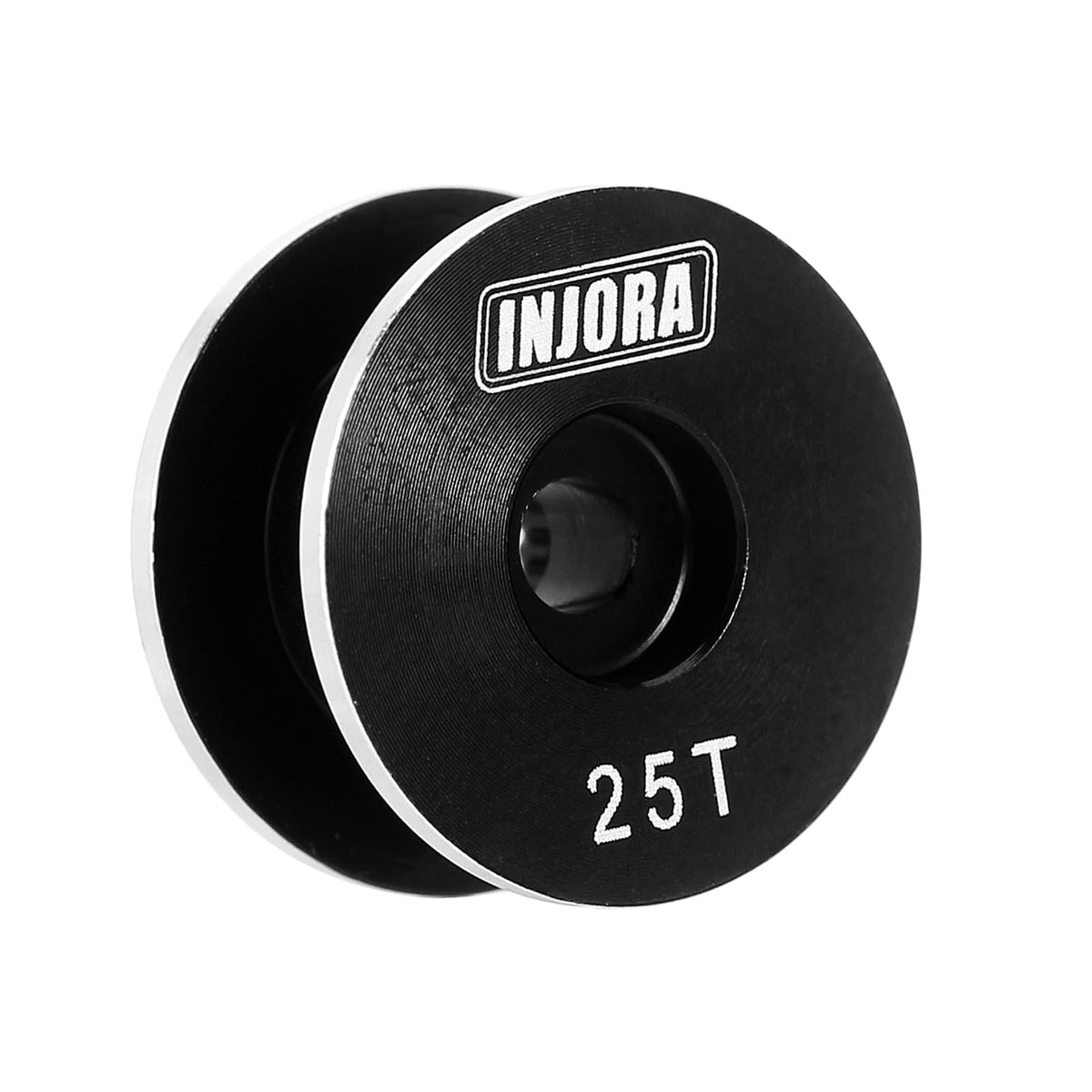

• Spools: standard 23T/25T teeth and low-profile 25T teeth
• Dimensions 40 × 20 × 28.8 mm and weight 50 g
• JR connector wire length about 300 mm for easy wiring
• Bearings: 2BB for smoother rotation

Real-world use scenarios

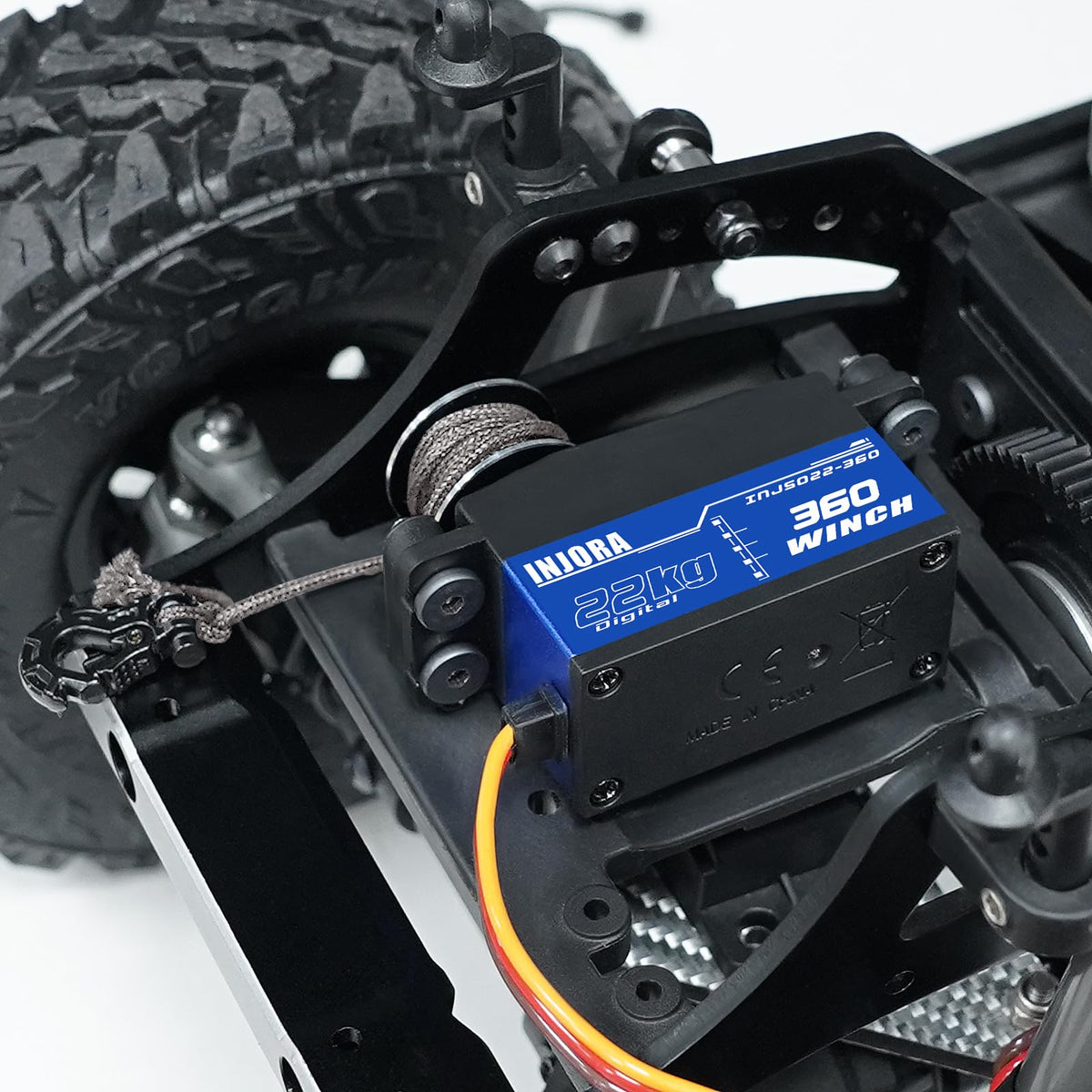

For rock crawlers, torque and 360 rotation help you conquer obstacles without reorienting the entire rig. On boats or amphibious builds, dual rope options let you tailor pull length and strength. The low-profile spool option reduces overall height in tight spots, while the standard spool supports longer rope layouts for extended reach.

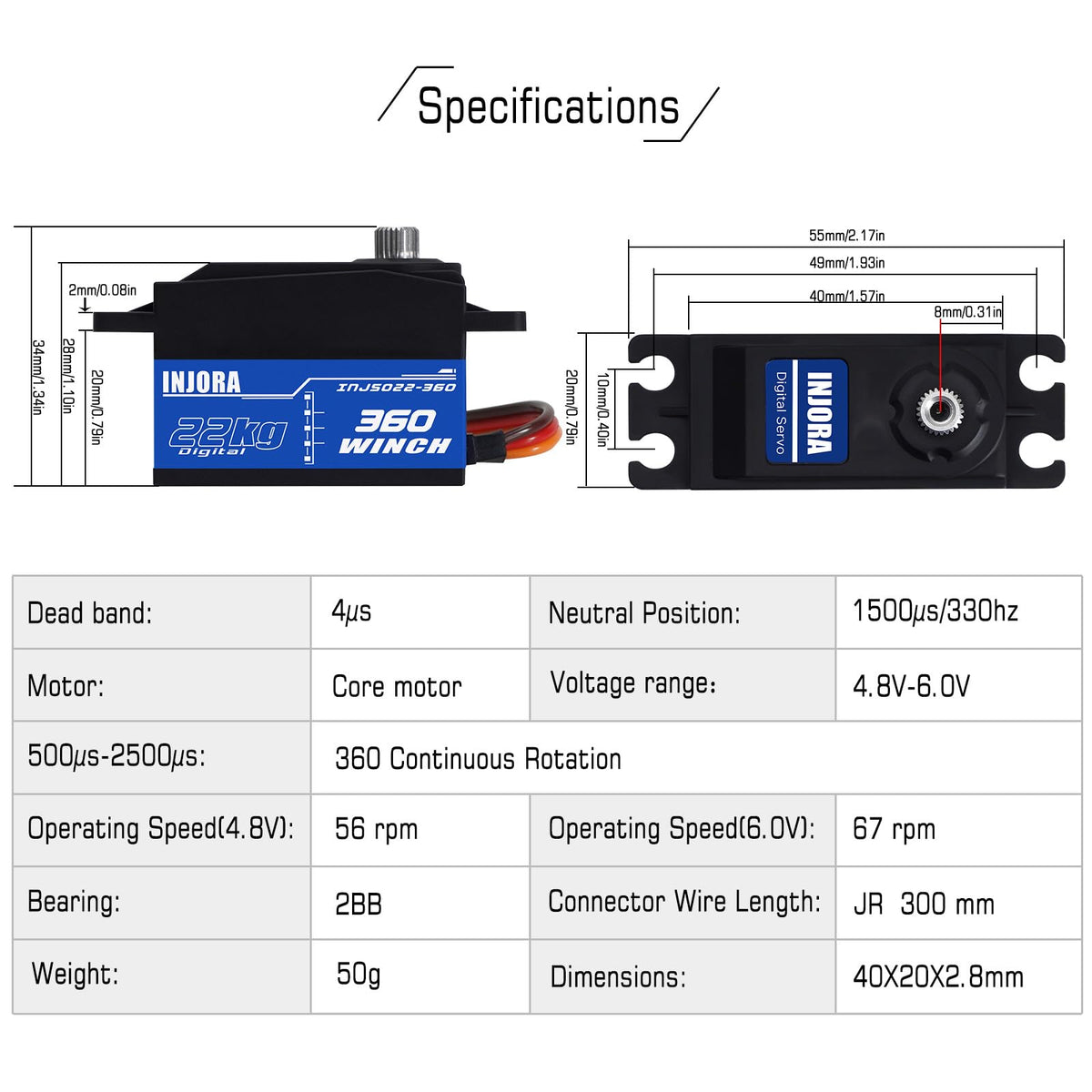

Specs at a glance

• Voltage range: 4.8–6.0 V
• Speed: 56 rpm at 4.8 V; 67 rpm at 6.0 V
• Stall torque: 17.6 kg.cm at 4.8 V; 22 kg.cm at 6.0 V
• Spline: 25T
• Dimensions: 40 × 20 × 28.8 mm; weight 50 g
• Bearings: 2BB; Not waterproof
• Ropes: nylon 116 cm; steel 96 cm

Note: This description highlights possibilities based on the data. Pair with appropriate mounting hardware and electronics to suit your build preferences.
