HeelAooRC 32-Bit AM32 ESC: 40A Brushless Controller with 5V 2A BEC and 470uF Capacitor

Overview

The HeelAooRC AM32 ESC is a compact, 32-bit electronic speed controller designed for small model planes, crawlers, and other tight installations. With a 40A peak rating and a built-in 5V 2A BEC, it delivers reliable power in a tiny footprint. The AM32 open-source firmware invites flexible tuning, while support for PWM, DSHOT, and Sine signals ensures smooth throttle transitions across speeds.

Note: For optimal operation, this ESC is intended to be used with the included Param Converter. The combination unlocks straightforward configuration and firmware upgrades, helping you tailor performance to your setup.

Key features

• 32-bit architecture enabling responsive throttle control and adjustable firmware
• Ultra-compact form factor (32 x 13 mm) suitable for tight installations
• Integrated BEC at 5V and 2A to power receivers or small flight controllers
• Enhanced heat management with a heat-friendly MOS layout on a single side
• Supports PWM, DSHOT, and Sine control signals for flexible integration
• Bidirectional operation, adjustable drag braking, and sine start for smooth transitions
• Fast forward/reverse switching with stable speed regulation
• Includes a 470 µF, 25V capacitor to improve stability under load

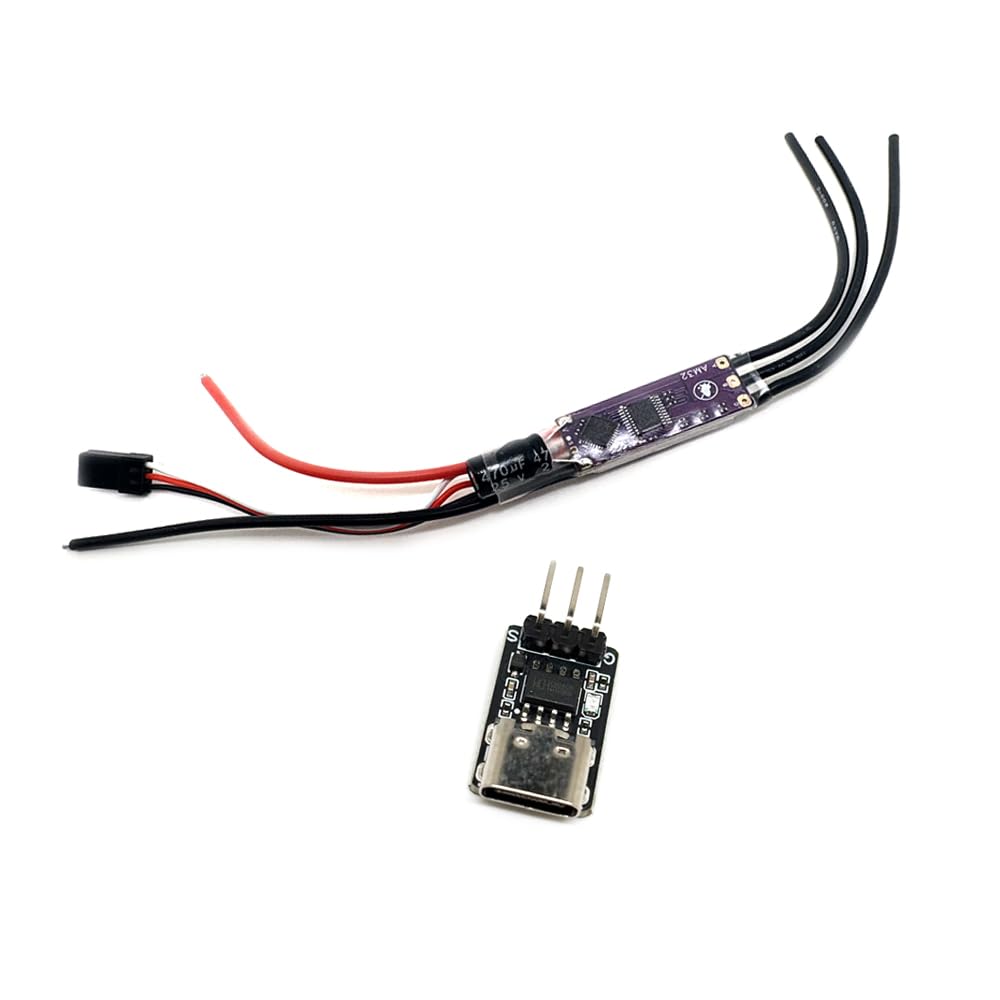

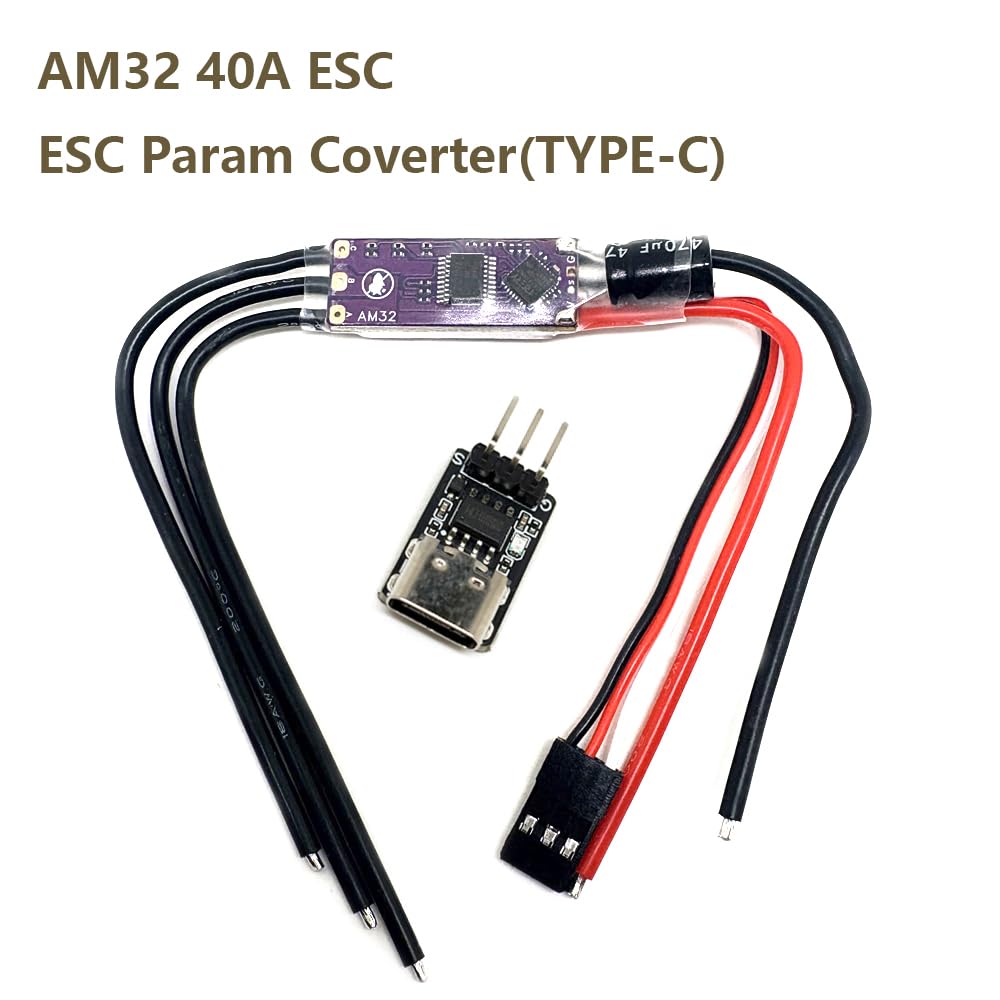

What you get

• 1 x AM32 ESC

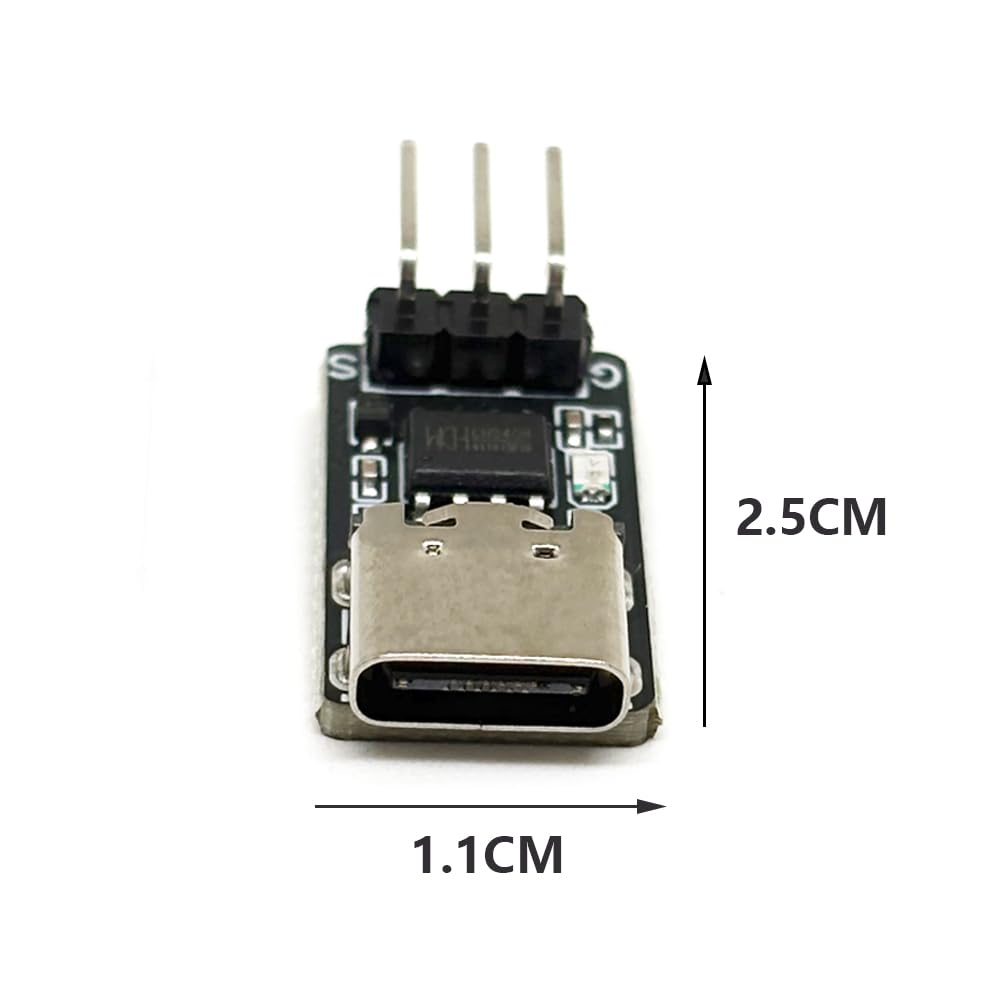

• 1 x AM32 Param Converter

Compatibility and setup

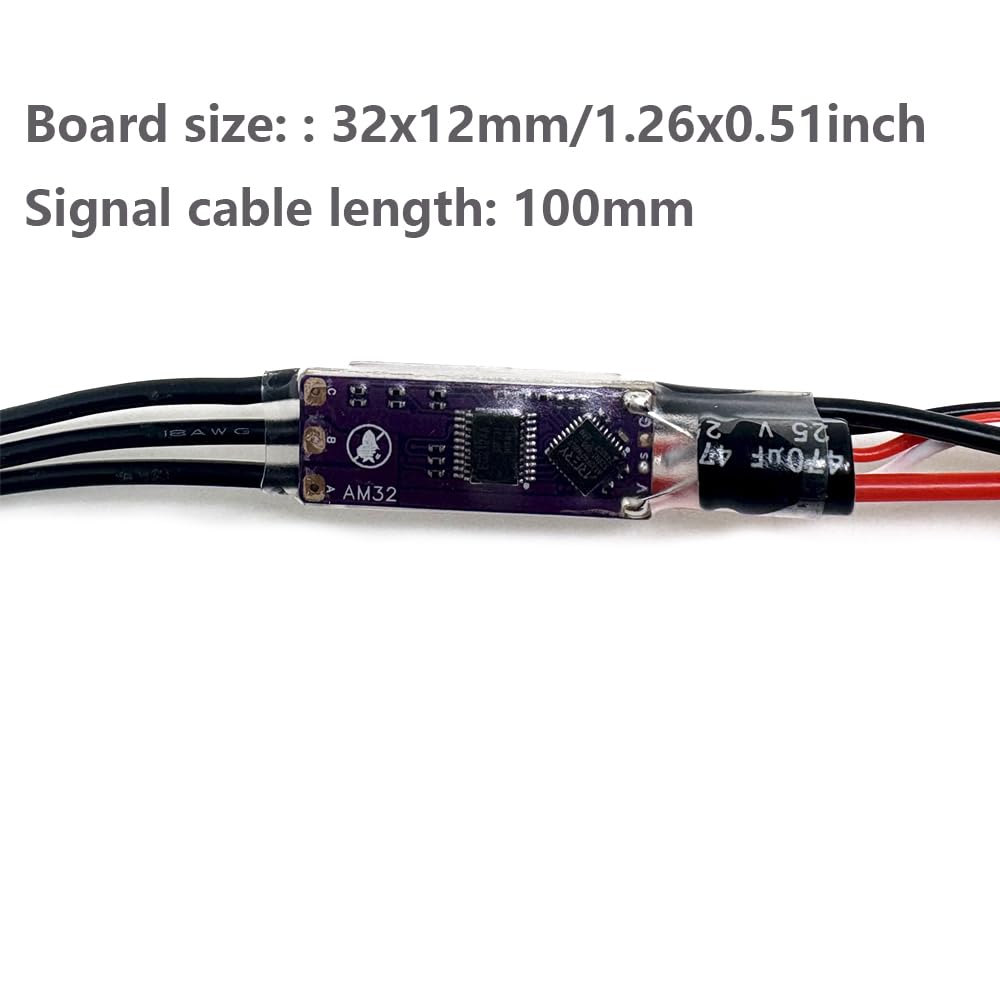

Working voltage supports 2-4S LiPo packs, making it versatile for small aircraft and crawlers. The board measures 32 x 13 mm, with an enhanced option at 32 x 12 mm for ultra-tight fits. A 100 mm signal cable helps accommodate typical RC wiring layouts.

Carefully pair the AM32 with the included Param Converter to access configuration options or firmware upgrades via a computer. This open-source approach lets you tailor throttle response, braking behavior, and startup profiles to your preferences.

Real-world use cases

Imagine a compact RC airplane performing precise, scalable altitude control, or a tiny crawler navigating rocky terrain with predictable, controllable speed. The AM32 aims to deliver consistent power delivery, reliable braking, and stable operation during bursts of throttle while retaining a minimal footprint for small builds.

Bottom line

If you’re seeking a compact, configurable ESC with a solid power package and expandability, the HeelAooRC AM32 ESC presents a thoughtful option for tight installations where space, heat management, and signal versatility matter. Treat the benefits as possibilities to explore rather than guarantees.
