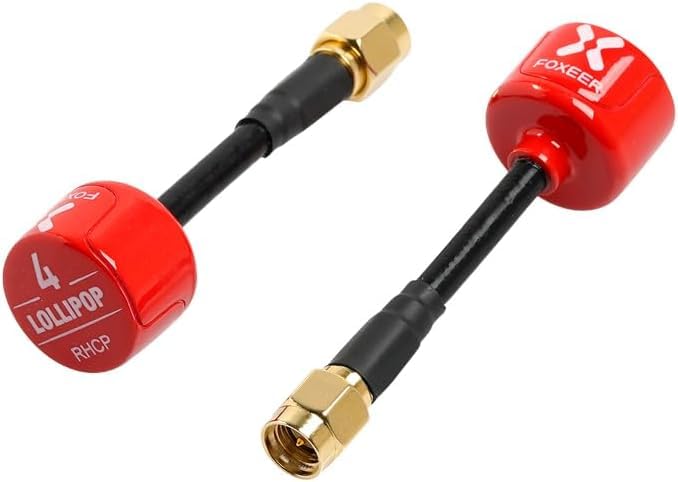

Foxeer Lollipop 4 5.8GHz RHCP FPV Antenna – 2 Pack, 60mm, SMA for FPV Racing

Overview

The Foxeer Lollipop 4 FPV antenna is a compact, red-shell option designed for FPV racing and goggles. It operates around 5.8 GHz with a bandwidth spanning 5.5 to 6.0 GHz, giving you flexibility across common 5.8 GHz channels. At 60 mm tall and 11 mm in diameter, it remains light on your airframe, helping you maintain agile handling through tight turns and gate lanes.

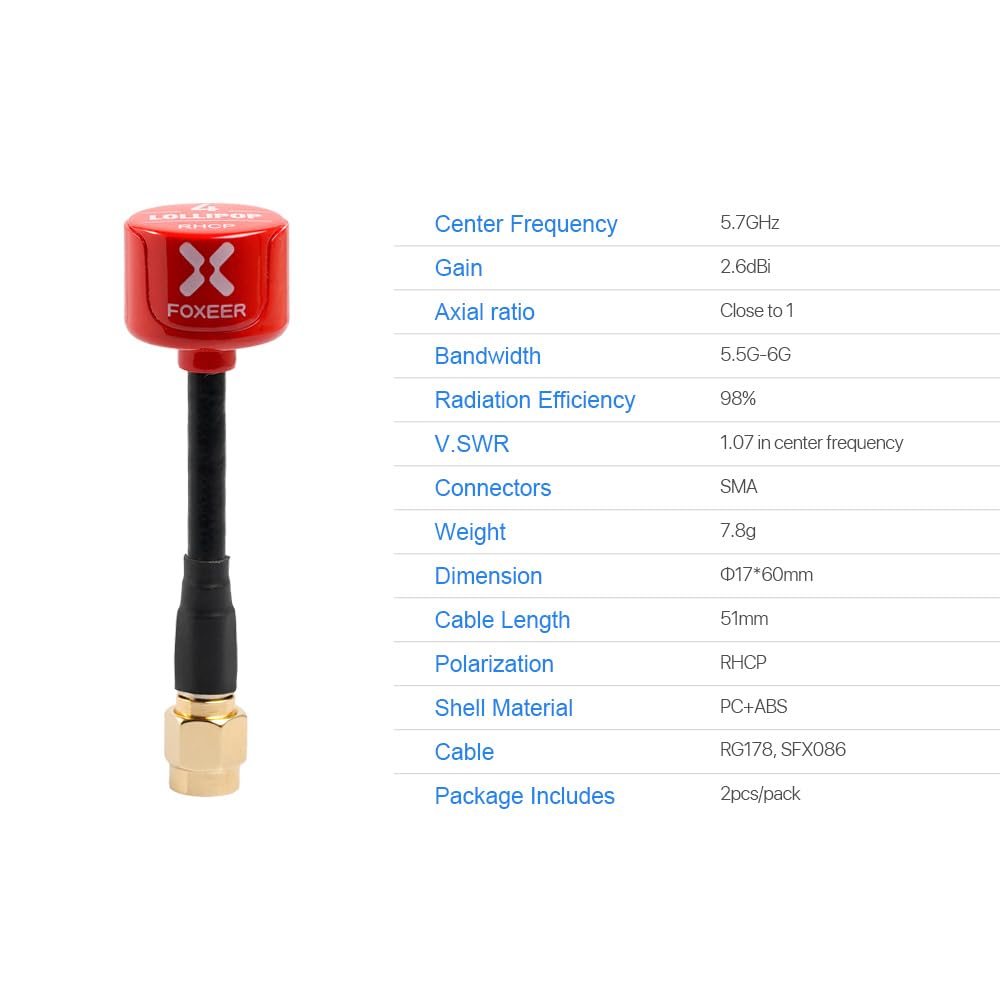

Key specifications at a glance

• Center frequency: 5.8 GHz
• Bandwidth: 5.5–6.0 GHz
• Gain: approximately 2.3–2.6 dBi
• Radiation efficiency: up to 98%
• Axial ratio: < 3 dB

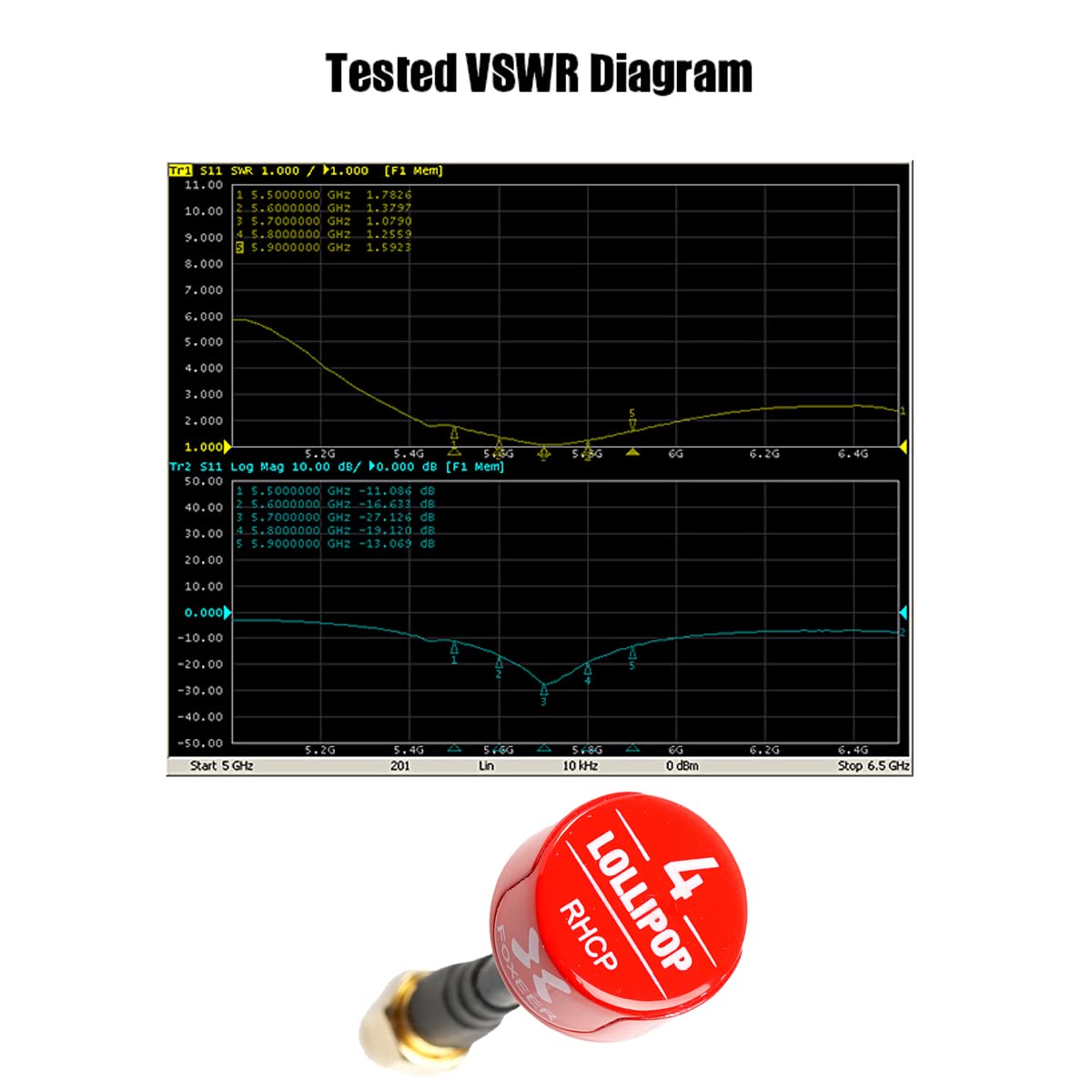

• VSWR: < 1.2 at center frequency
• Polarization: RHCP

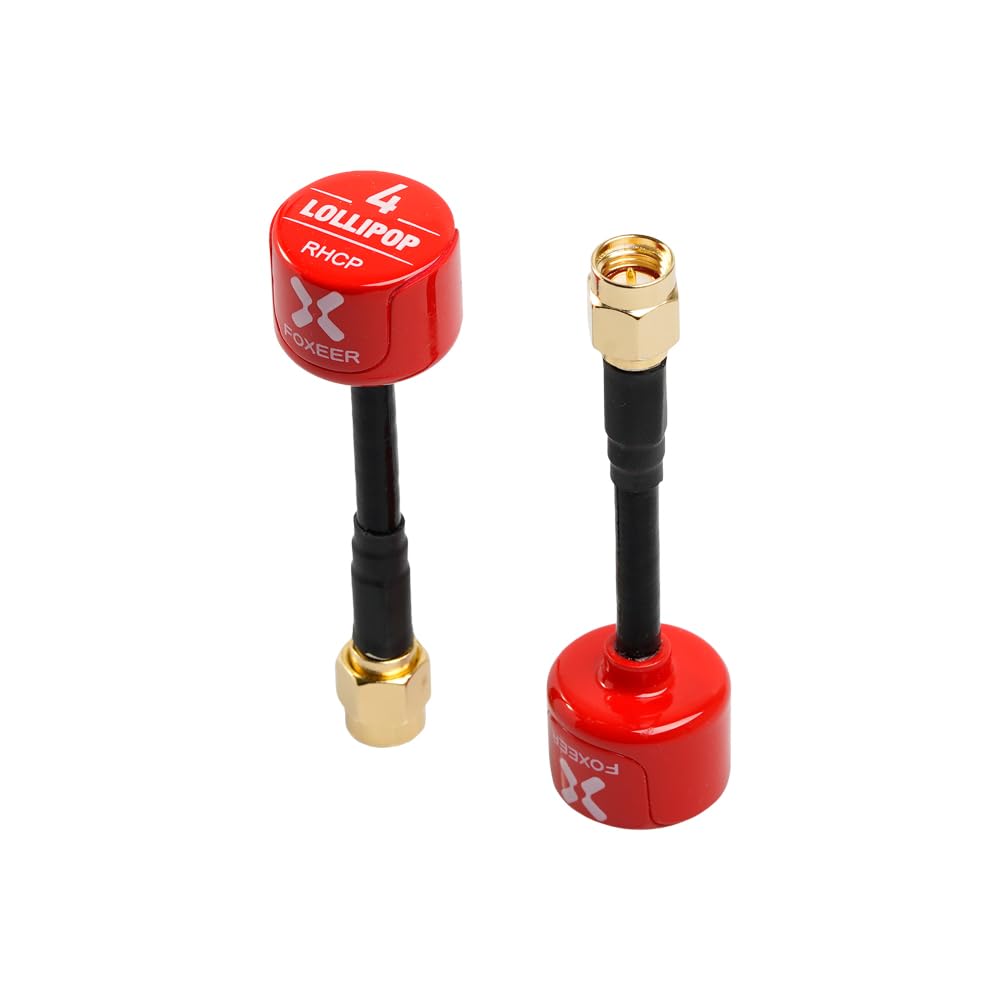

• Connector: SMA or RP-SMA
• Weight: 7.3 g per unit

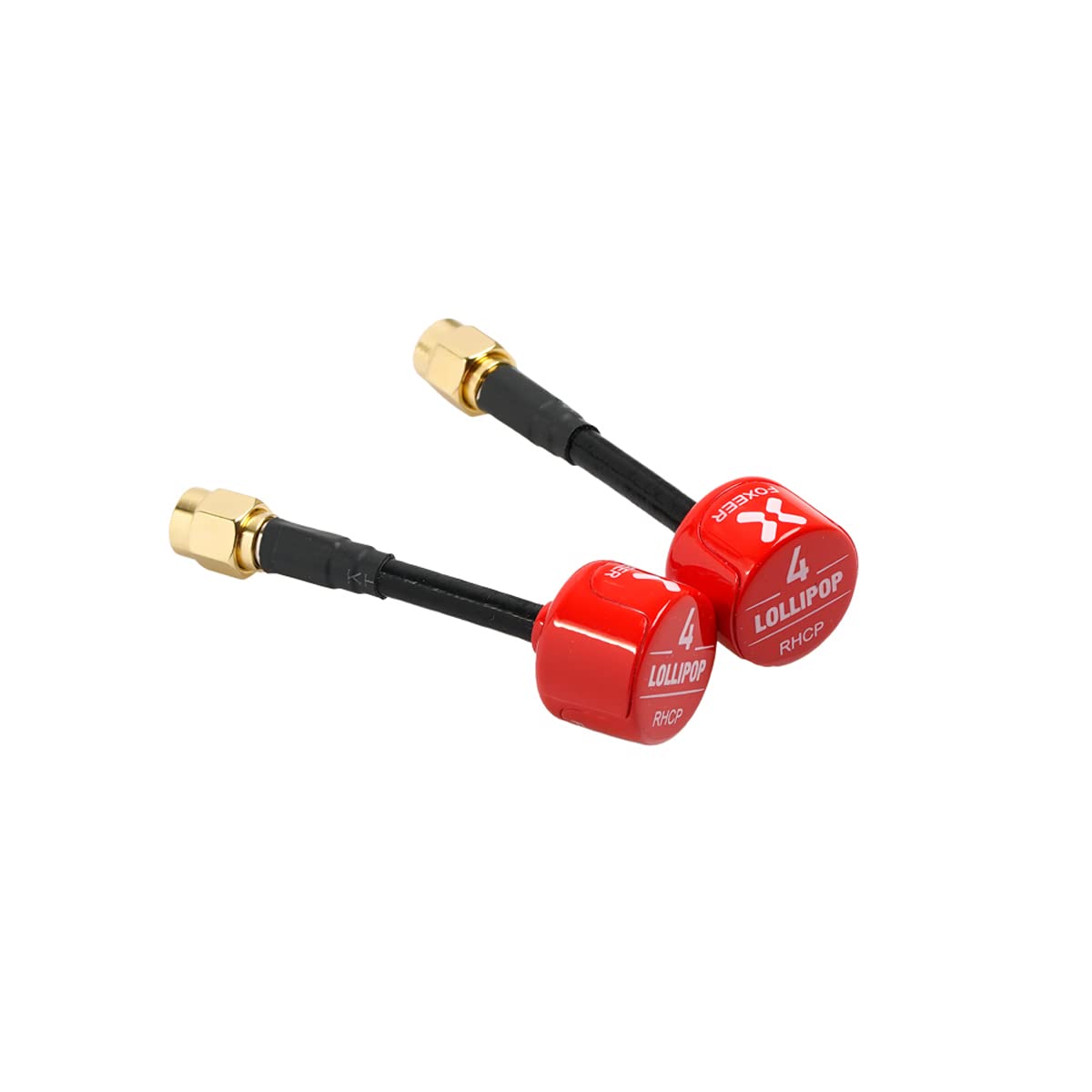

• Dimensions: 60 mm length, 11 mm diameter

Design and durability

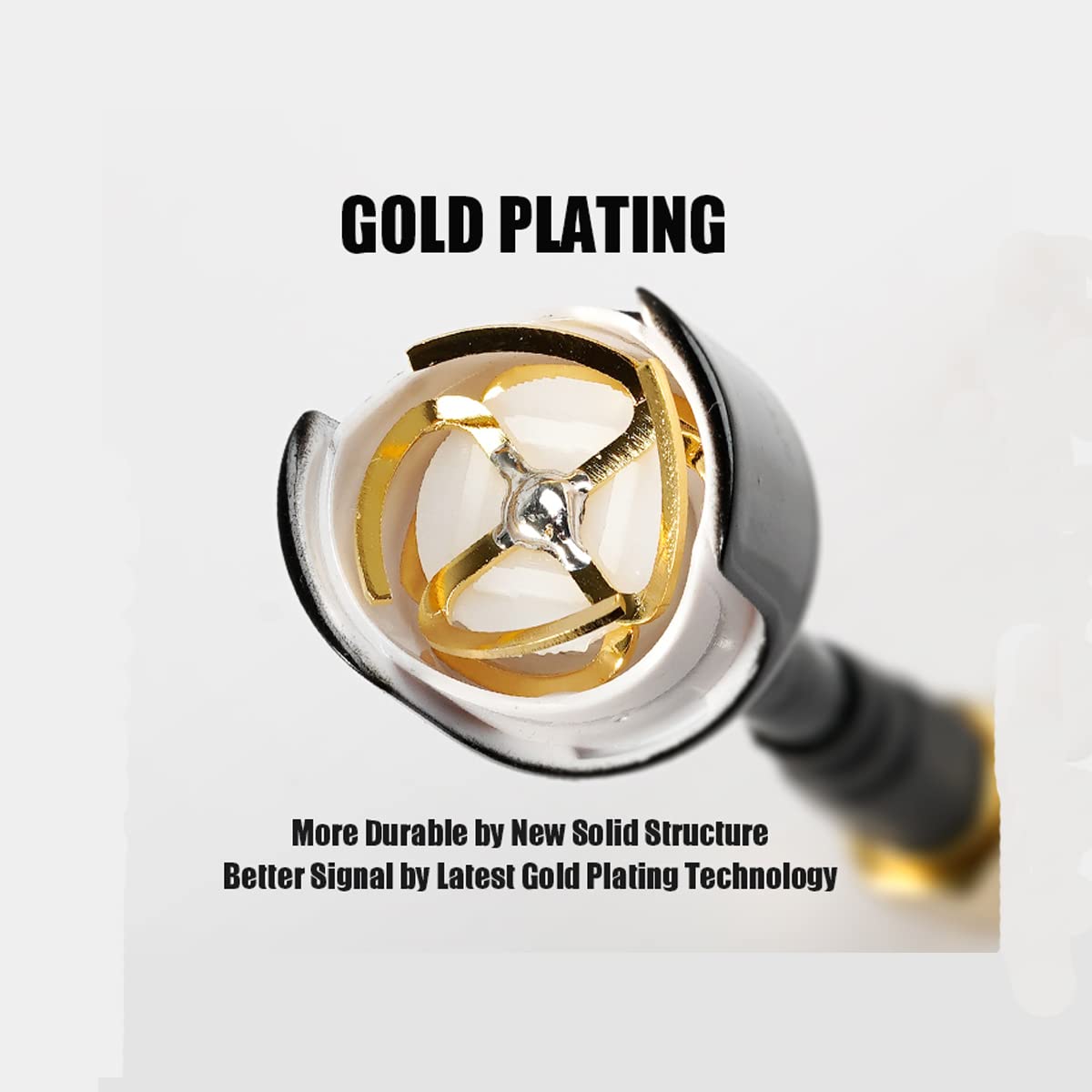

Built with imported PC+ABS material, the Lollipop 4 is designed to withstand impact and maintain performance in dynamic flight. An I-root reinforcement design allows bending at multiple angles while keeping 360-degree protection and low feeder loss, making mounting straightforward even in tight spaces.

Performance and real-world use

In typical FPV environments, this antenna aims to deliver a stable link with clear polarization. The RHCP design helps minimize cross-pole interference during close encounters with other pilots, and the high radiation efficiency supports consistent signal through turns and around obstacles. Its compact form keeps the airframe lean, while the light weight helps preserve handling and responsiveness.

What’s in the box

• 2 x Foxeer Lollipop 4 5.8G RHCP FPV antenna
• 2 x SMA/RP-SMA connectors (varies by kit)

Installation tips

The bendable design allows you to align the antenna for optimal clearance and minimal feed loss. Ensure a secure connection to your transmitter or goggles, and verify channel plans within your gear for best results in race settings.
