FlySky FS-BS6 Receiver | 2.4GHz AFHDS2A, 6CH for RC Cars & Boats

Meet the FlySky FS-BS6 receiver, a compact 2.4 GHz AFHDS2A 6-channel unit designed for RC cars and boats. Weighing just 10 g and measuring 29 × 22 × 16 mm, it slips into tight spaces while delivering stable link-up with compatible FlySky transmitters. The RF receiver supports a wide voltage range (4.0–8.4 V) to fit common RC power rails, helping simplify wiring and reduce clutter around the chassis.

In real-world setups, small form factor matters. The FS-BS6 keeps weight to a minimum, preserving handling and acceleration in nimble boats and off-road cars. The advanced AFHDS2A protocol helps maintain a reliable connection, while the built-in gyroscope feature provides automatic recovery of unexpected offsets on compatible systems. This helps maintain a smooth steering and throttle response without additional hardware.

Key benefits at a glance

• Easy to bind and very fast link-up for quick deployment
• RF receiver sensitivity around -92 dBm for robust reception
• Ultra-small size and ultra-light weight to save space and reduce load on the airframe

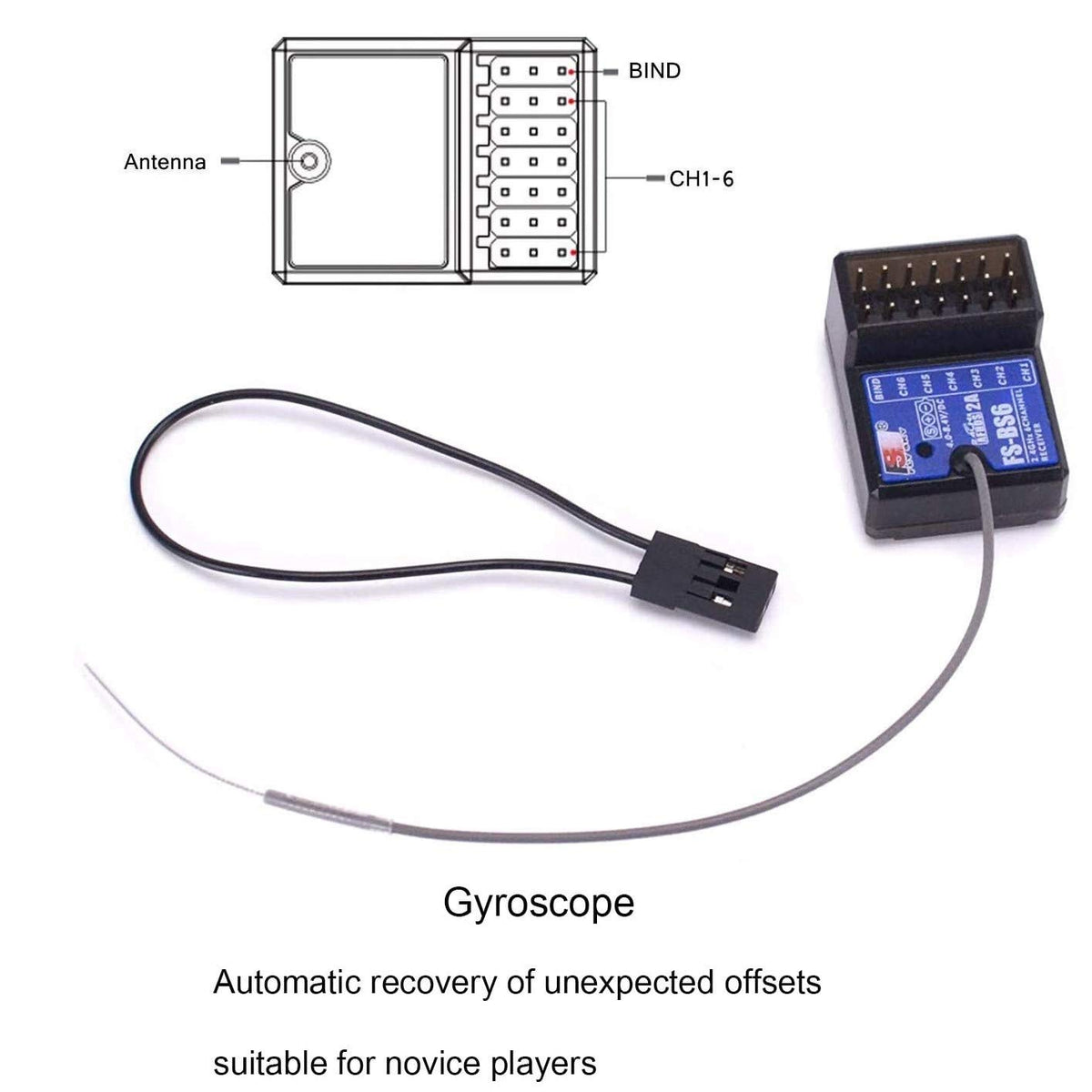

• Built-in gyroscope with automatic offset recovery for AFHDS2A compatibility

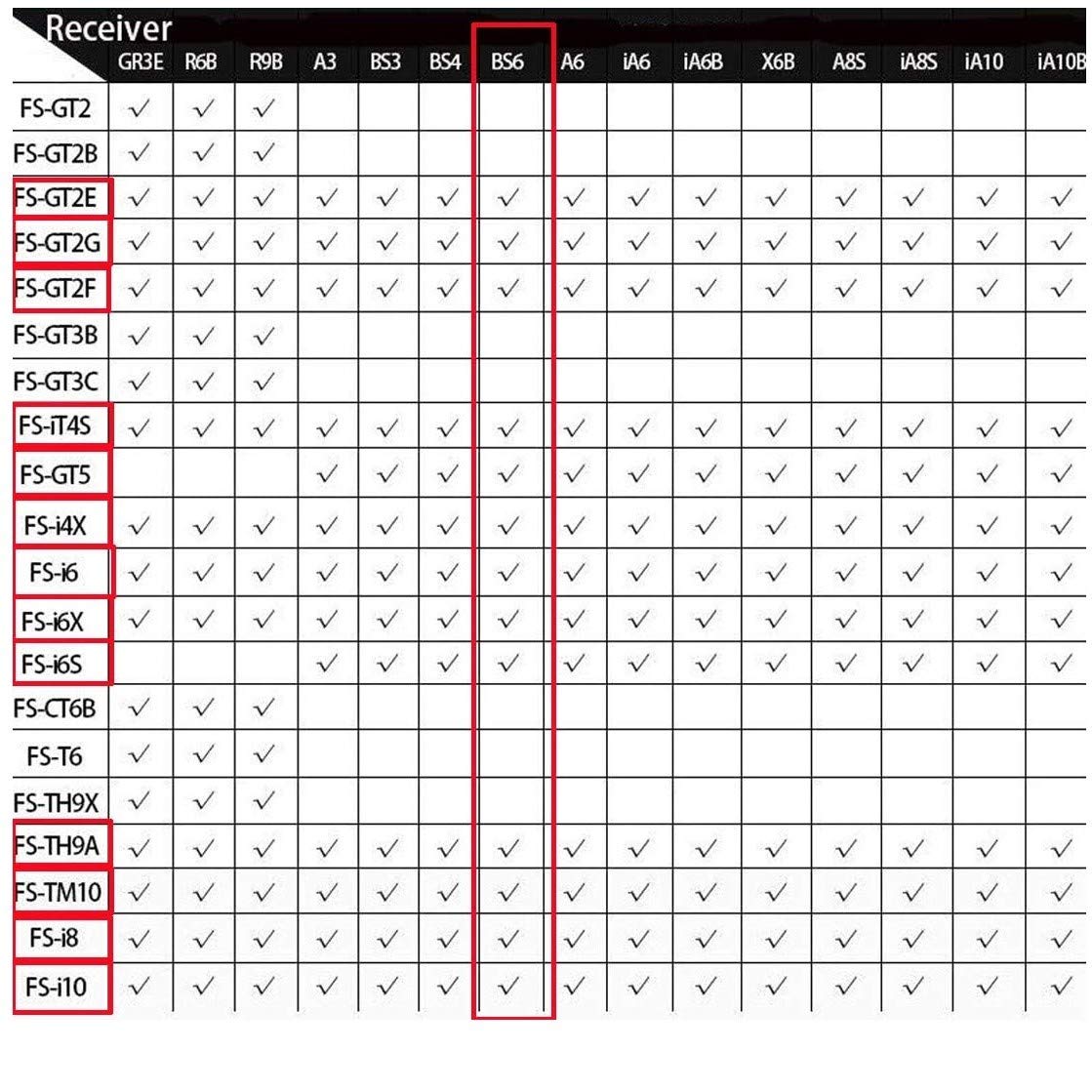

• Compatibility with a range of FlySky transmitters (GT5, GT2E, GT2G, i4X, i6X, i6S, TH9A, TM10)
• 2 receivers and 2 cables included for quick replacement or dual-setup

Designed for compact RC builds

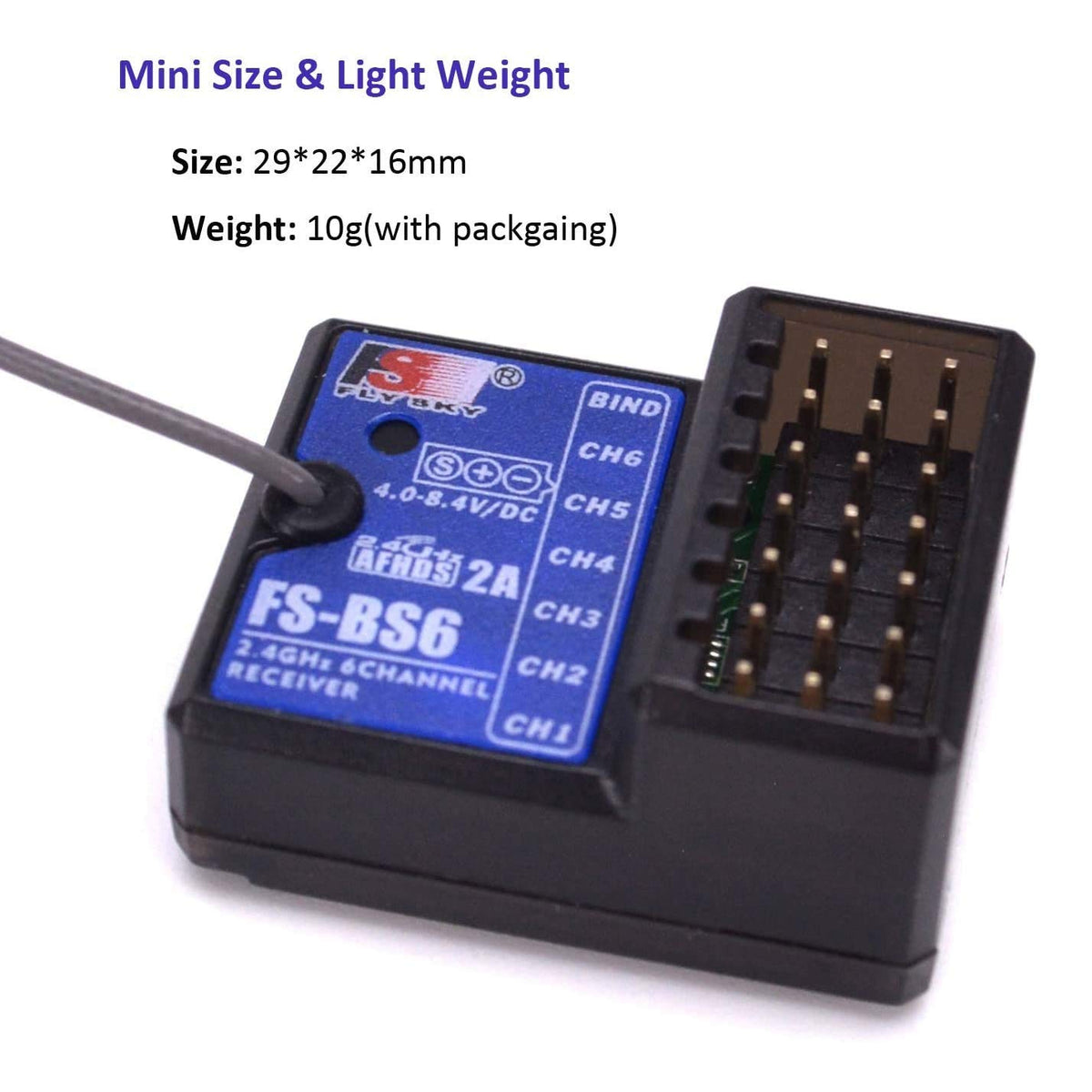

• Dimensions: 29 × 22 × 16 mm; Weight: 10 g — ideal for tight spaces
• Operating voltage: 4.0–8.4 V supports common battery packs and power rails

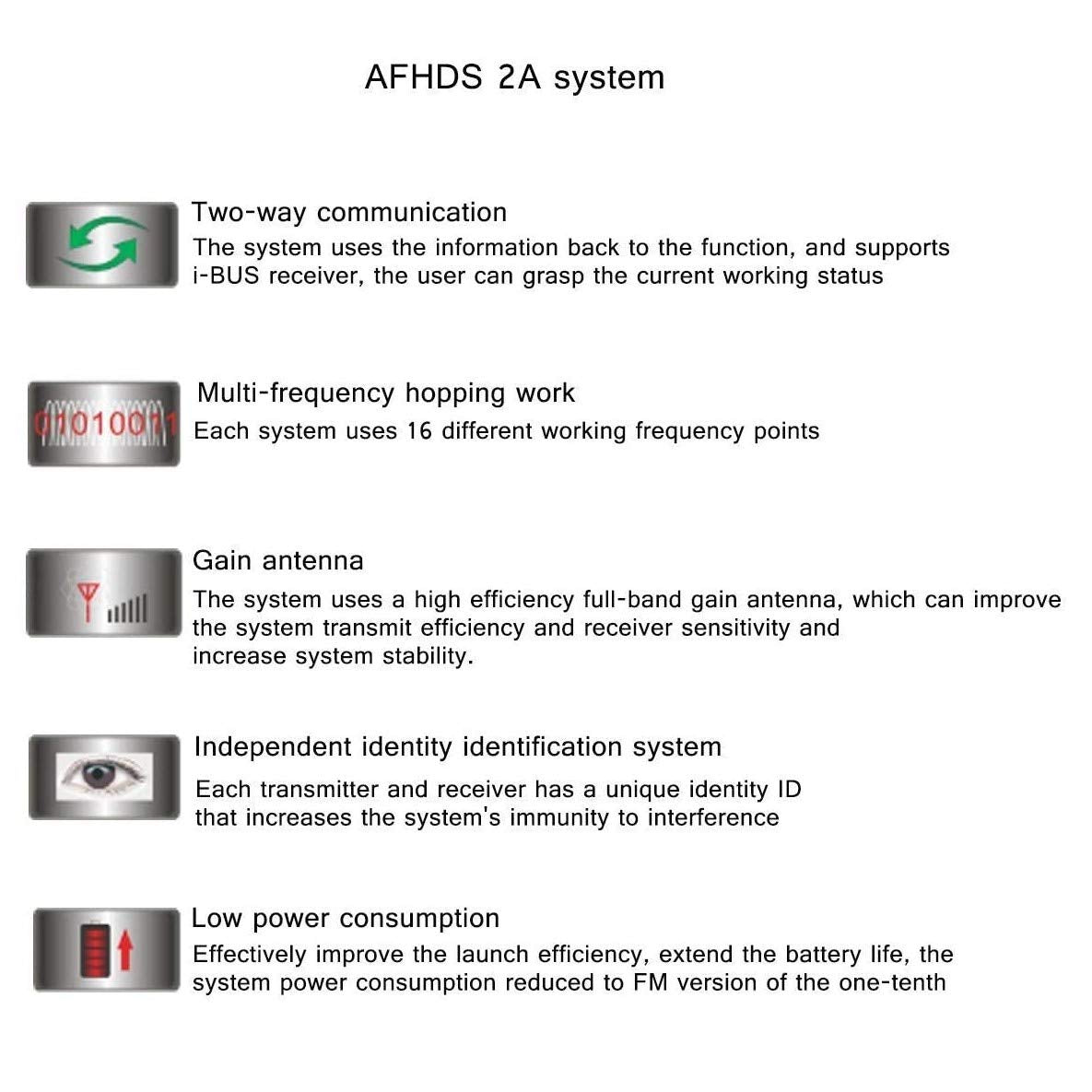

• 2.4 GHz AFHDS2A provides modern wireless performance with reduced interference

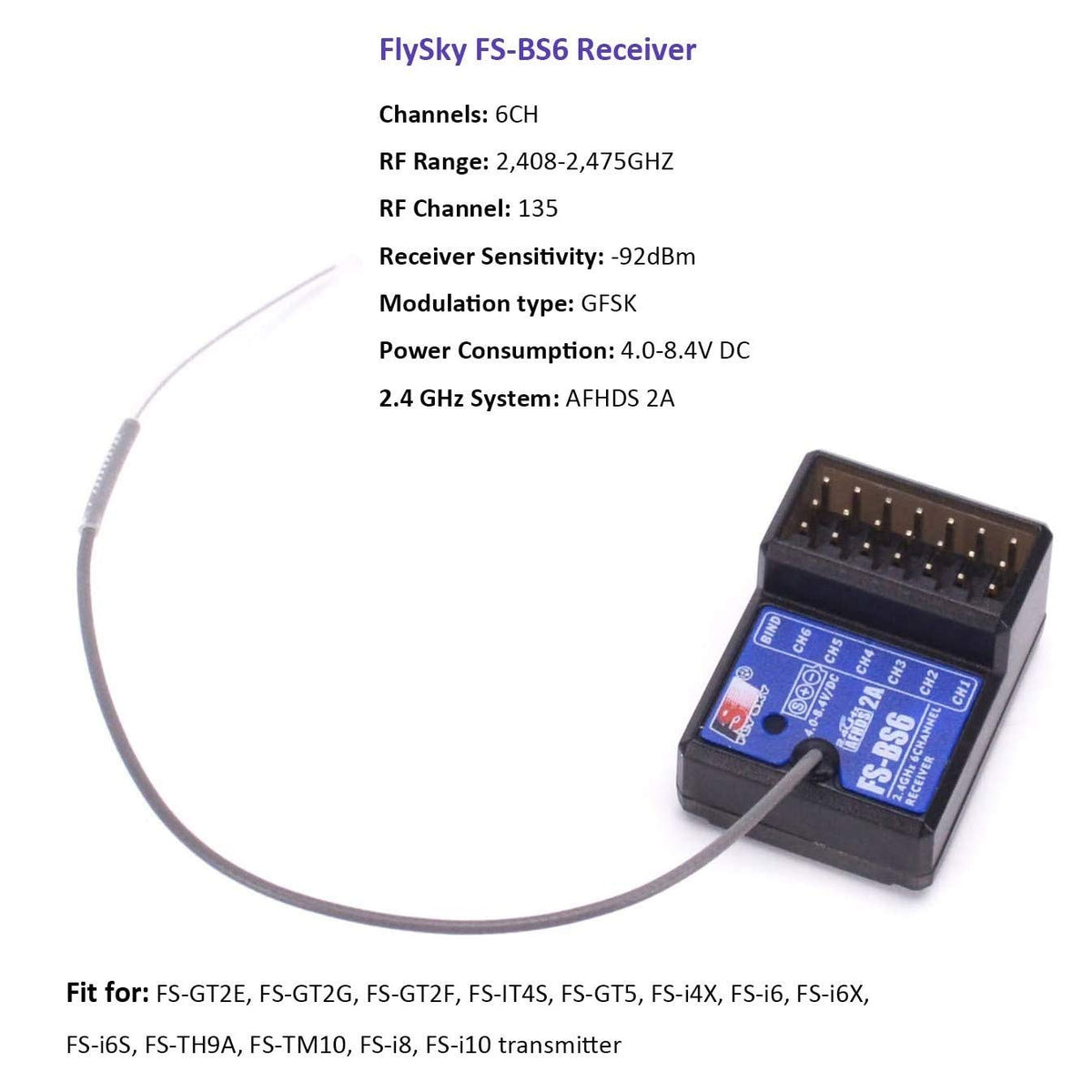

What’s in the box

• 2 × Flysky FS-BS6 Receiver
• 2 × Cable
• Poly bag packaging

Binding and setup tips

If the first link is slow, try re-linking: insert the code line into the receiver BIND interface, power on the receiver to begin flashing, then press the BIND button on the transmitter and power it up. The receiver indicator remaining on signals a successful link.

Note: A few deviations in measurements may occur due to manual production tolerances. The device is designed as an accessory to the FlySky ecosystem for RC cars and boats and should be used with compatible AFHDS 2A transmitters.
