DTXMX Flysky FS-iA10B Receiver 10-Channel 2.4GHz AFHDS 2A | PWM, PPM, iBUS Output

Overview

The DTXMX Flysky FS-iA10B is a compact 10-channel receiver designed for a range of RC models. Operating on 2.4 GHz with the AFHDS 2A protocol, it offers flexible outputs including PWM, PPM, and iBUS, making it suitable for airplanes, gliders, helicopters, and other craft you may fly or pilot.

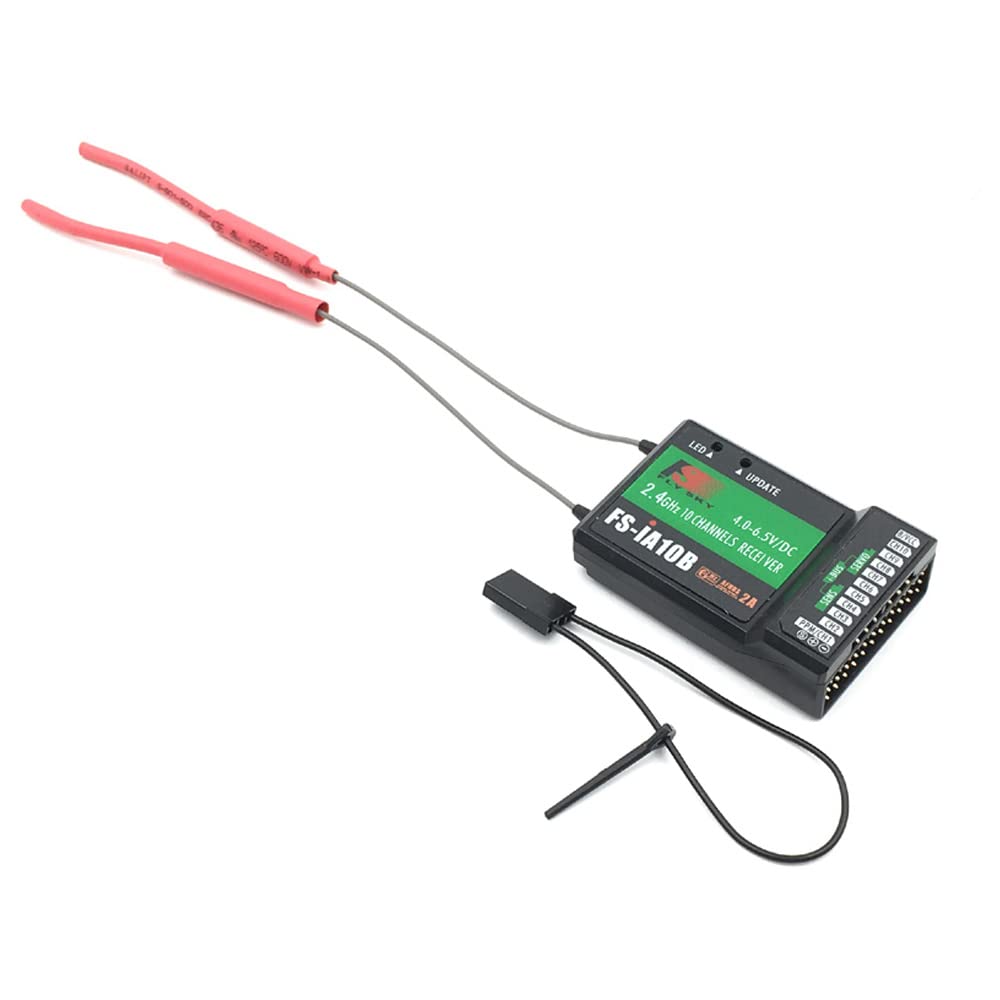

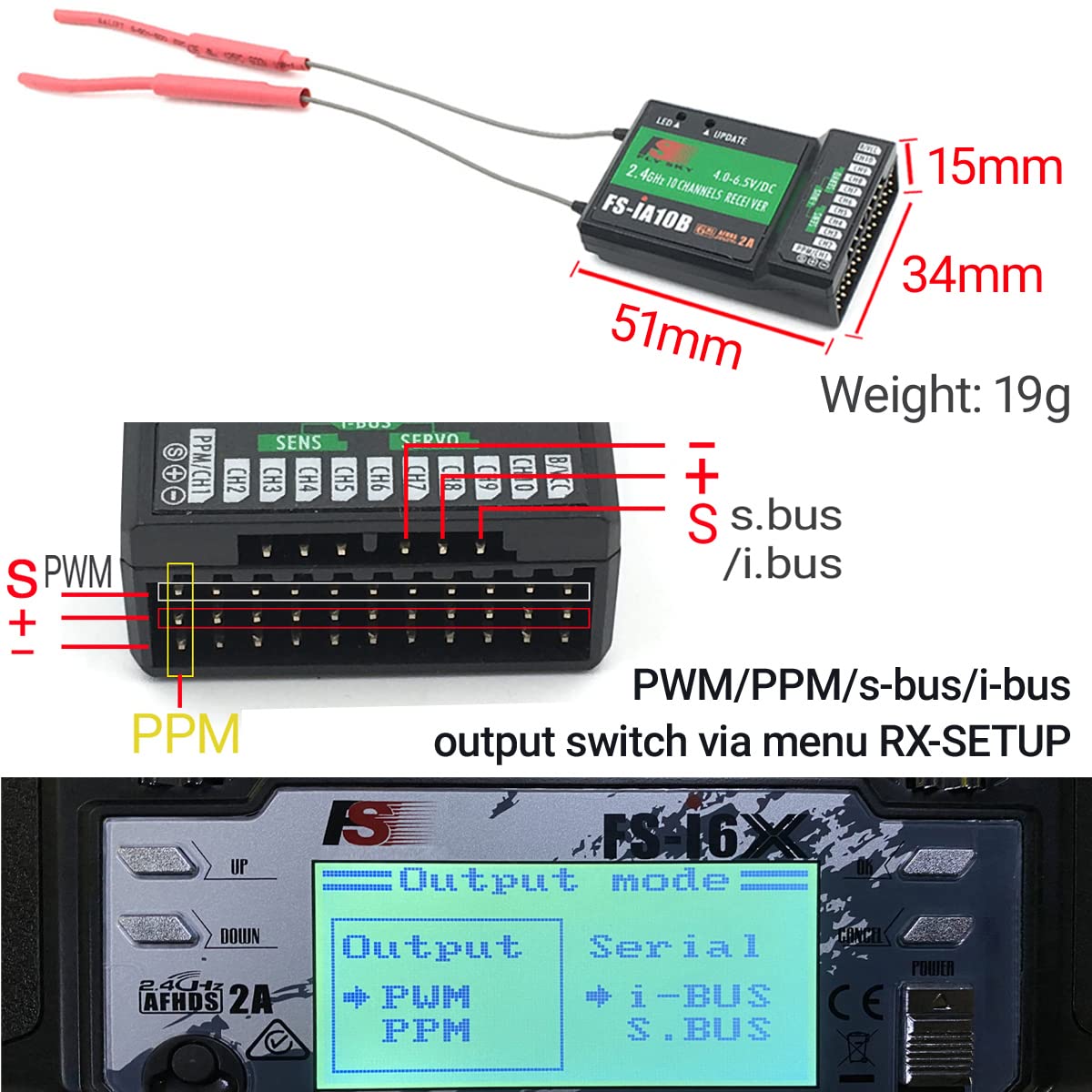

With a lightweight build and dual antennas, this receiver is built to fit inside tight airframes and smaller craft without adding unnecessary bulk. Weighing about 19.3 g and measuring roughly 47 × 33.1 × 14.7 mm, it is easy to integrate into compact layouts while still delivering multiple control options.

Key benefits and use cases

• 10 channels provide ample control for primary surfaces, accessories, and auxiliary functions on a single unit.

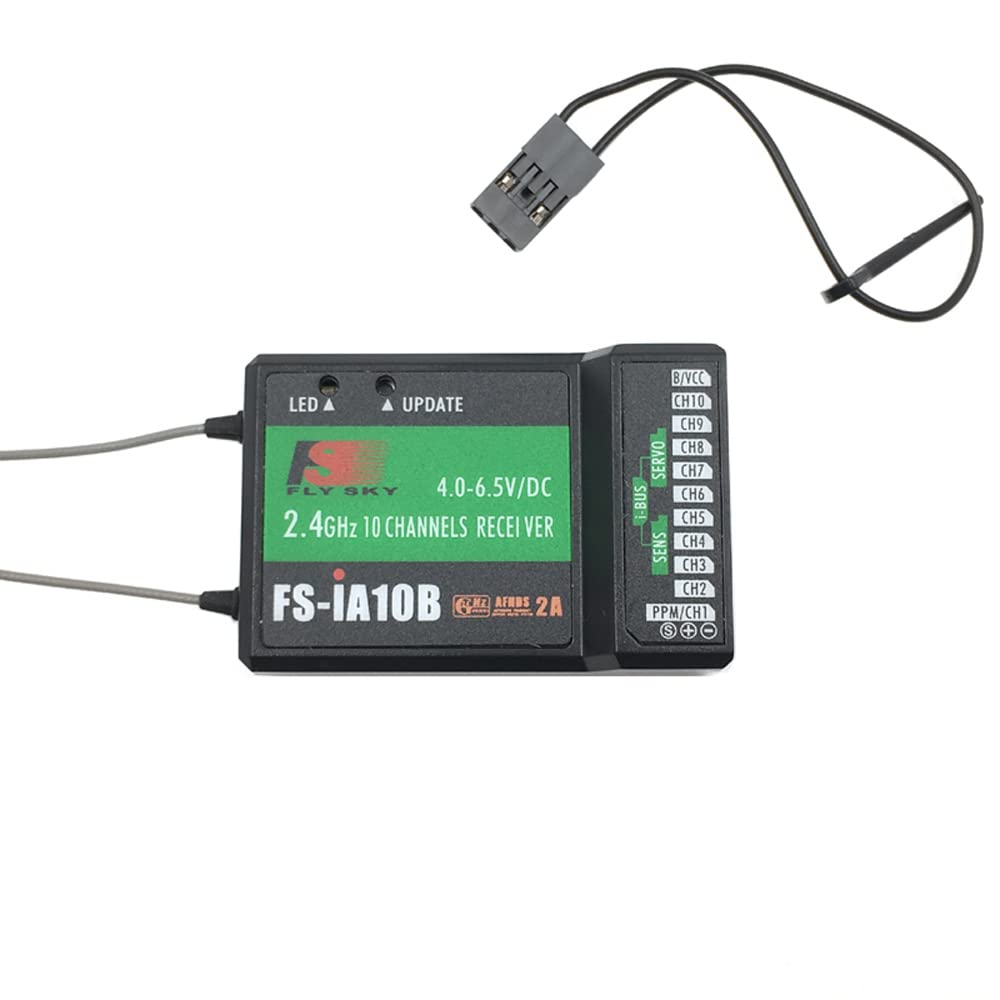

• Dual 2.4 GHz antennas are designed to help maintain a stable link in typical flying environments.
• Supports PWM, PPM, and iBUS outputs for versatile integration with compatible transmitters and flight controllers.
• Small, light form factor is well suited for airplanes, gliders, helicopters, RC boats, and surface vehicles.

Important notes on power and binding

Do not connect the receiver directly to a battery. Power should come through an ESC or a dedicated step-down regulator, supplying 4.0–6.5 V to the VCC input for reliable operation.

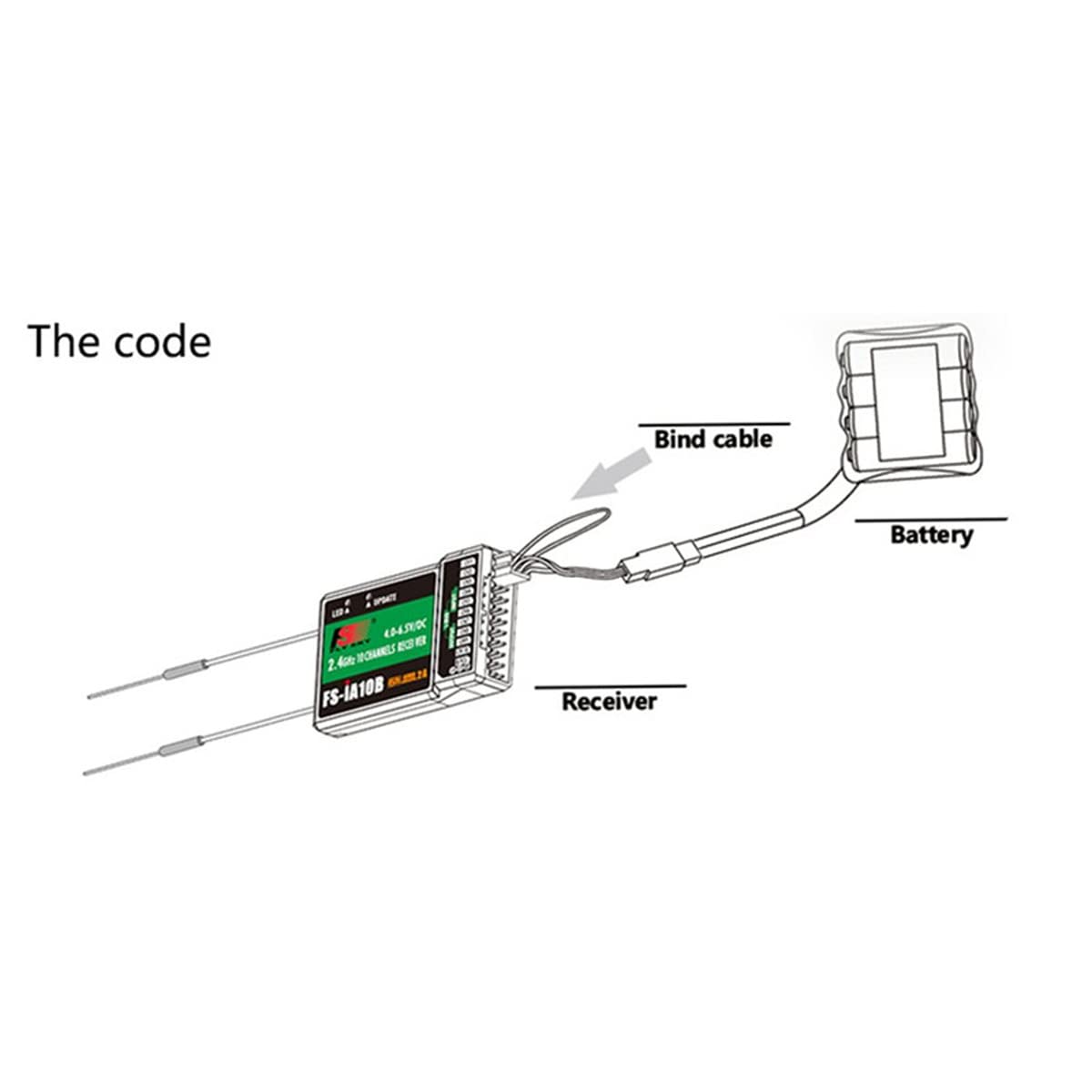

Included in the package are 1 x Flysky FS-iA10B 10-channel receiver and 1 x Bind plug. The binding process is straightforward with compatible Flysky transmitters and involves a quick binding sequence and LED confirmation to indicate a successful match.

Compatibility and guidance

The FS-iA10B supports PWM, PPM, and iBUS outputs, and it is designed to work with FS 2.4 GHz transmitters. Be aware that certain transmitter configurations may affect S.BUS compatibility, depending on the pairing and firmware in use.

What’s inside

• 1 x Flysky FS-iA10B 10-channel receiver
• 1 x Bind plug

Whether upgrading an established setup or assembling a new RC system, this receiver offers a flexible, compact solution with clear binding steps to help you tailor your configuration to your model’s needs. Always check your transmitter’s compatibility notes for precise feature support.
