DORHEA 12x MG90S 360° Micro Servo Motors — 9G Servos for Raspberry Pi & DIY RC Projects

Overview

The DORHEA MG90S 360° micro servo kit brings compact, high-precision motion to tight spaces. With 12 identical servos weighing around 9 g each, this bundle is ideal for small robotics, camera pan rigs, and modular RC builds. The 360° rotation opens up new design possibilities beyond standard servos, from smooth pan-tilt arrangements to compact steering or motion systems. The gear train is engineered for quieter operation, helping maintain a calmer sound profile in indoor settings or classrooms while delivering crisp, repeatable responses.

Key specifications

• 12 × MG90S micro servos (360° rotation, 9 g each)
• Working voltage: 4.8 V
• Speed: 0.11 s / 60° at 4.8 V
• Stall torque: 2.0 kg·cm (4.8 V)
• Operating temperature: 0°C to 55°C
• Dead-band: 5 μs
• Pulse range: 500–2500 μs; center around 1500 μs

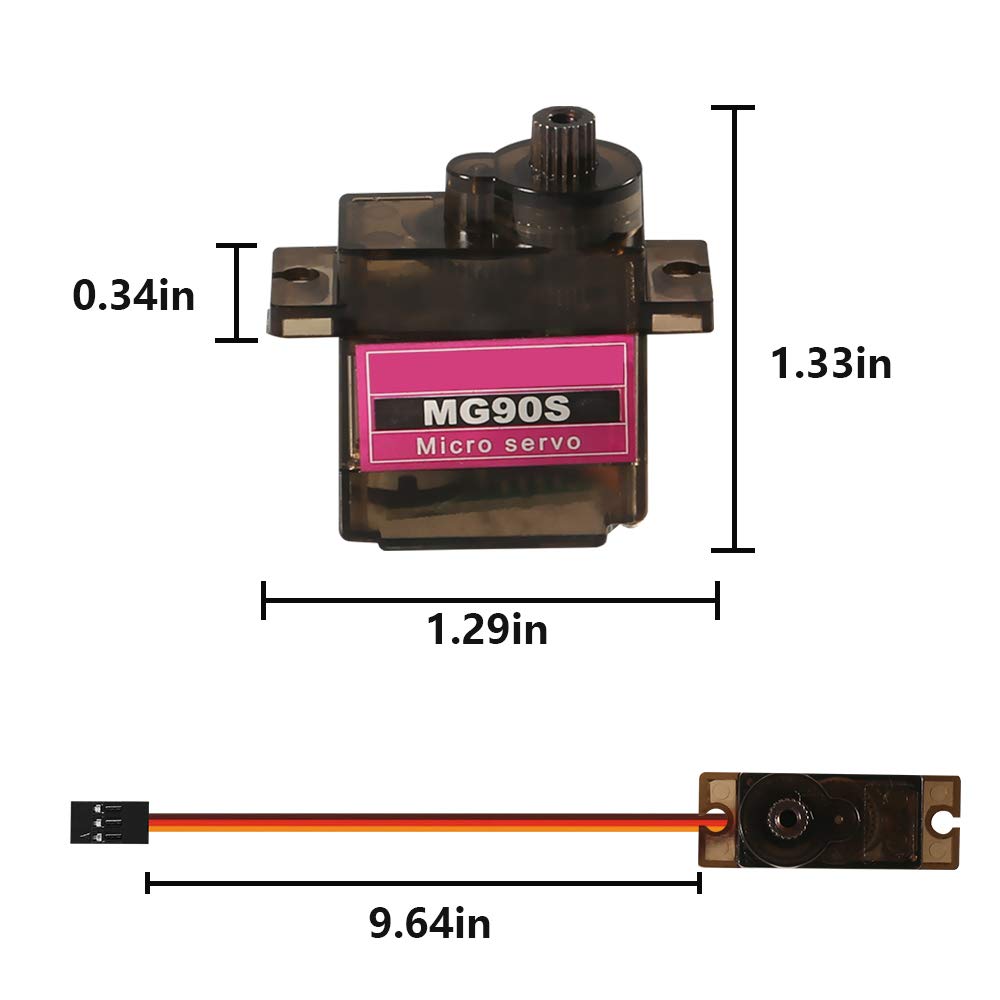

• Lead length: 300 mm; plug types: JR, FUTABA general

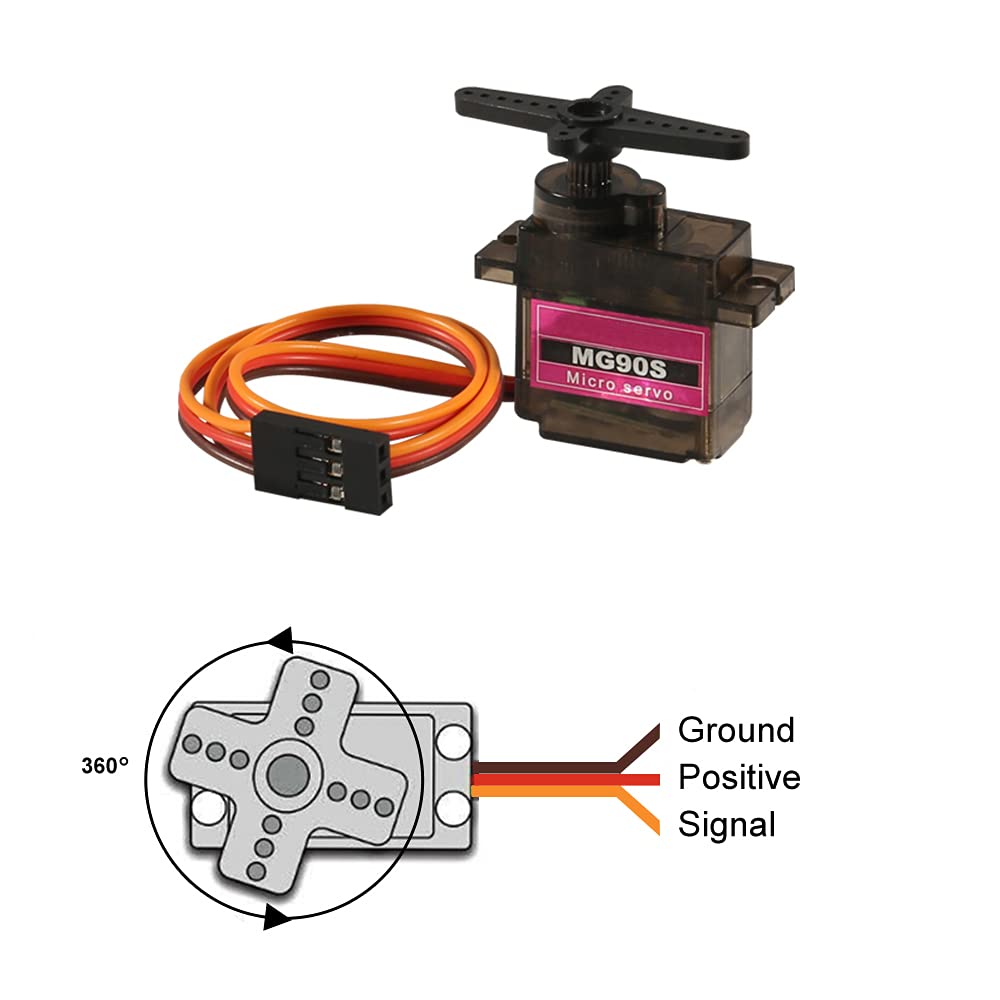

• Factory baseline: 90°, rotation begins from the center pulse

What’s in the box and compatibility

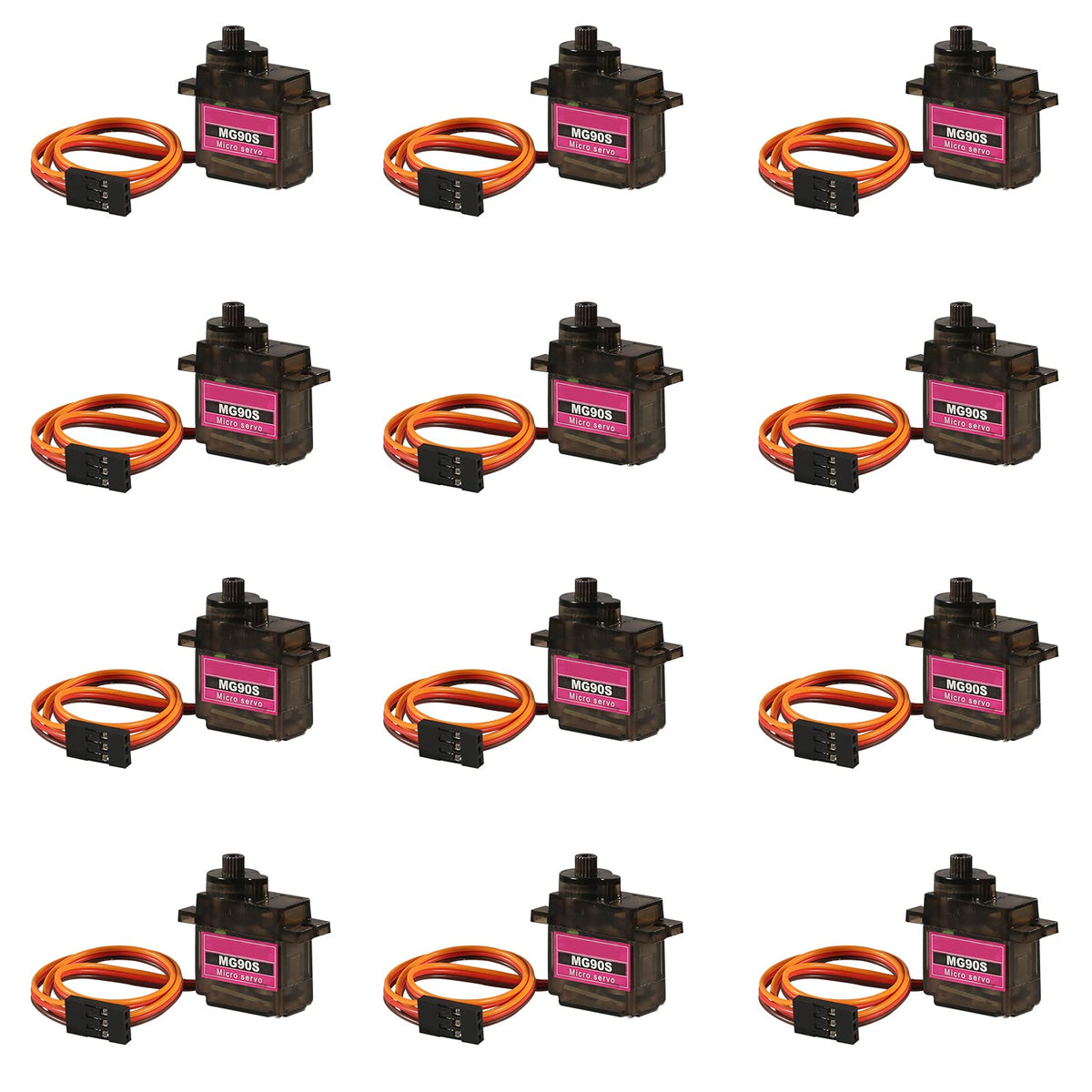

• 12 × MG90S 360° micro servos

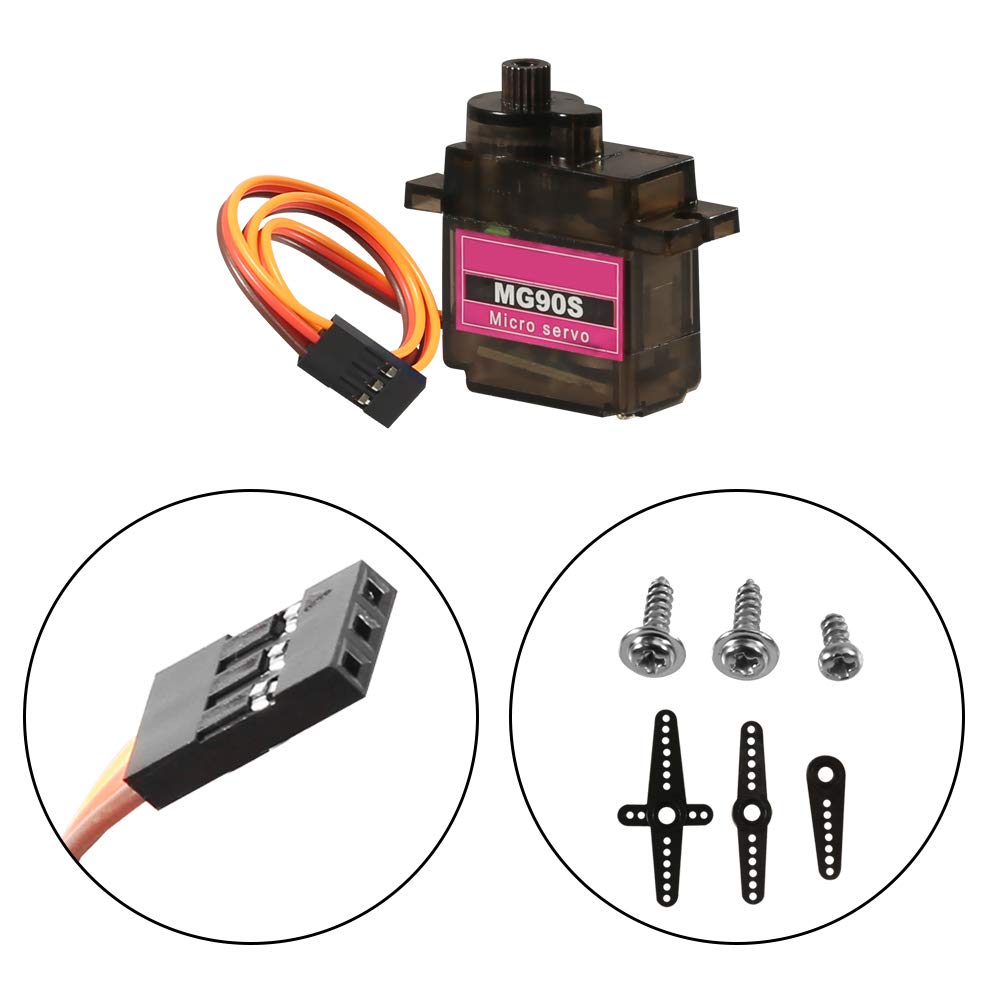

• 12 × servo arms and screws
• 300 mm lead wires; JR and FUTABA compatible connectors

Practical uses

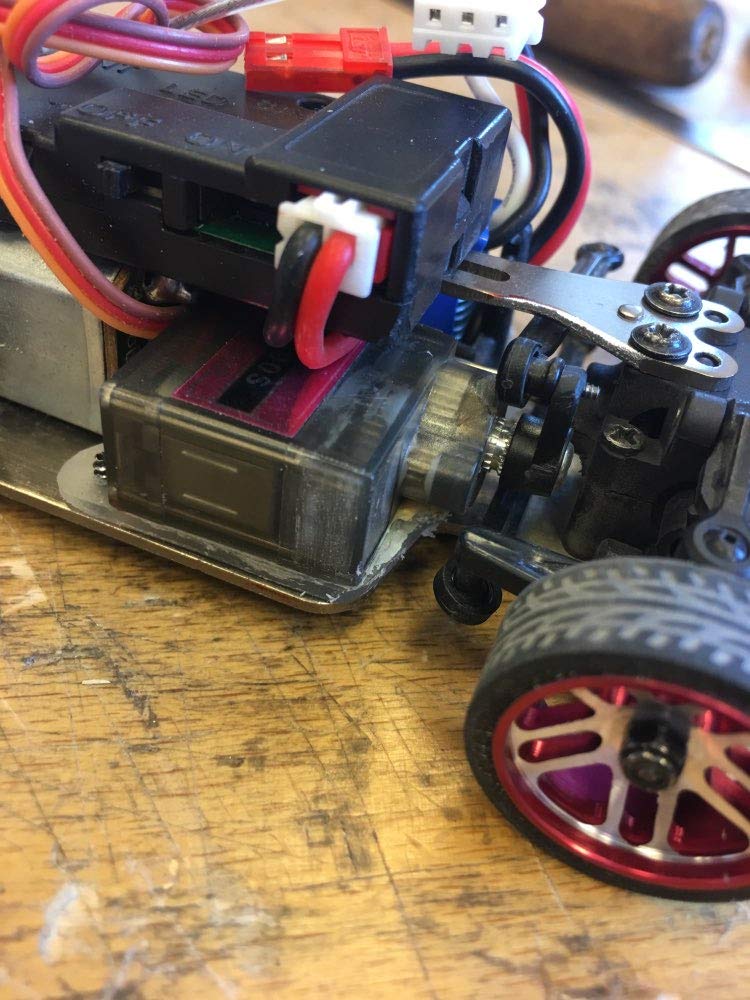

• Perfect for micro RC models such as helicopters, boats, cars, and drones
• Great for DIY robotics projects with Raspberry Pi or Arduino
• Ideal for compact pan/tilt cameras and small-motion automation
• Educational kits to explore servo control, sequencing, and motion design

Setup and tips

The servos are controlled by PWM signals. If the PWM signal halts, the servo stops; resuming from a zero signal begins a new 360° sweep. Start calibration from the 1500 μs center and adjust within the 500–2500 μs range to suit your mechanism. The factory baseline is 90°, so you may need to remap signals in your controller for your desired angles. This kit is not intended for large fixed-wing aircraft; it shines in compact, precision-focused projects and educational experiments.
