BETAFPV Pavo20 Pro II Brushless Whoop — O4 Pro HD VTX, 1104 7200KV Motors

Overview

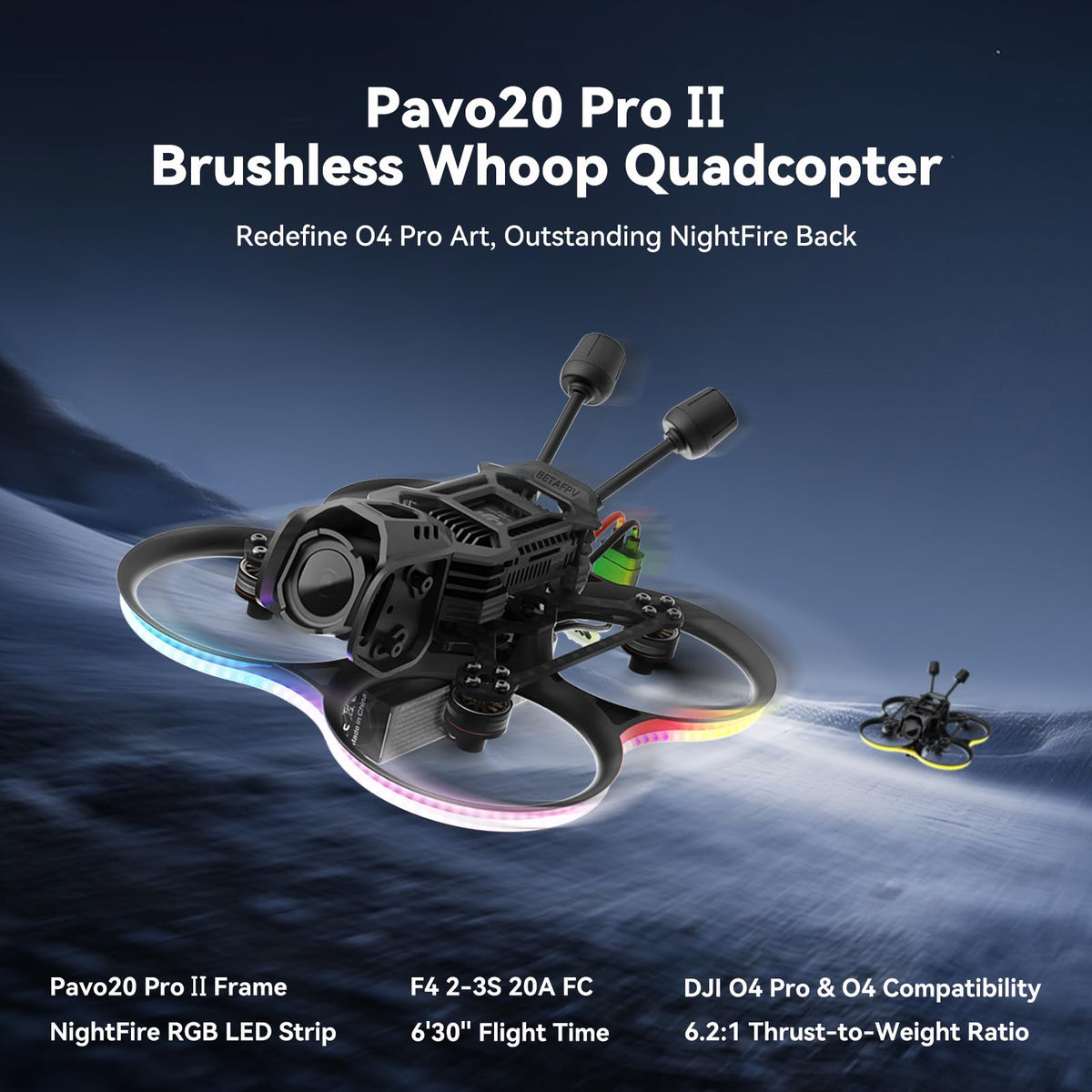

The BETAFPV Pavo20 Pro II is a compact, high‑performance brushless whoop designed for dynamic FPV freestyle. With a 93.9 mm wheelbase and thickened crash‑proof ducts, it offers durable resilience for aggressive flights and precise control in tight spaces.

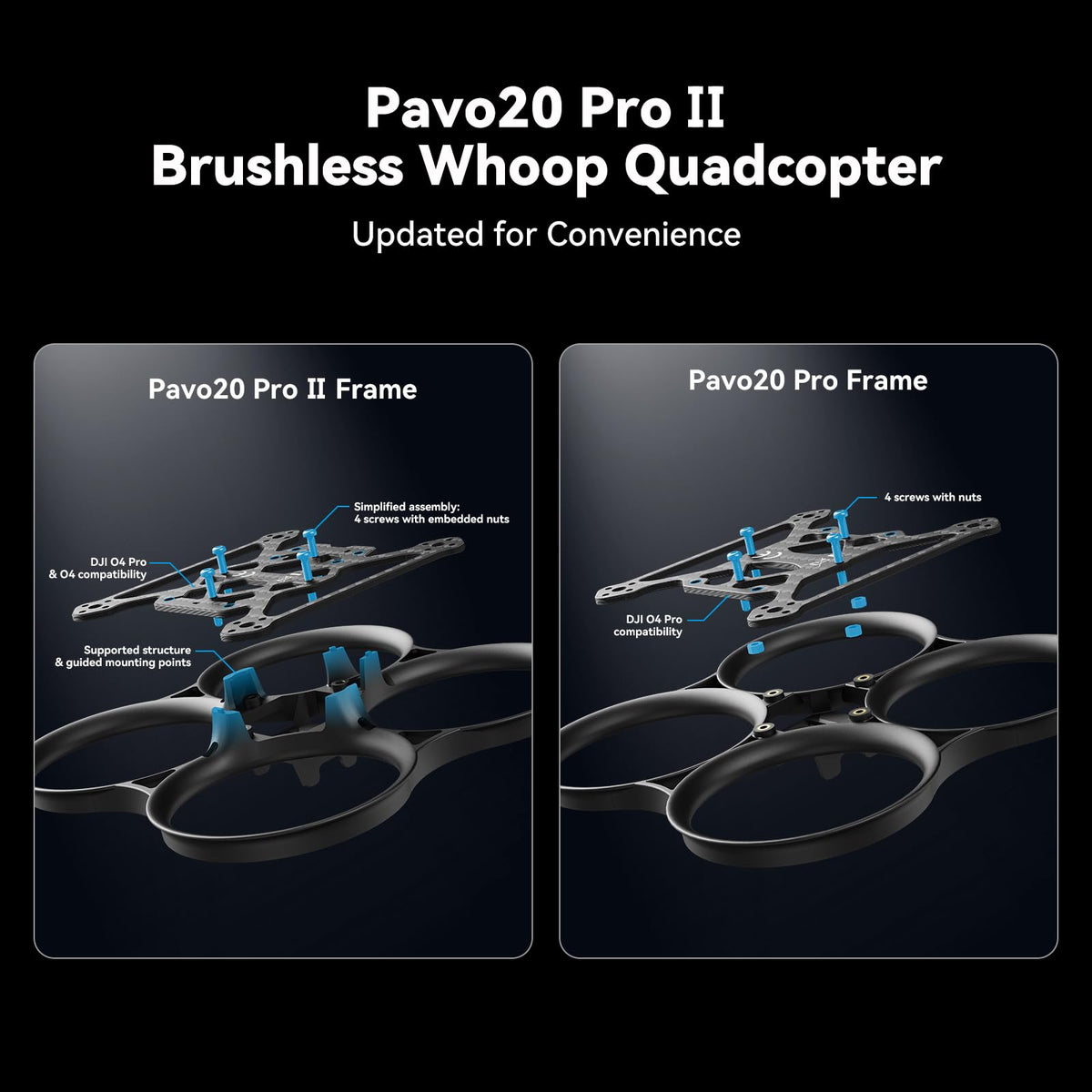

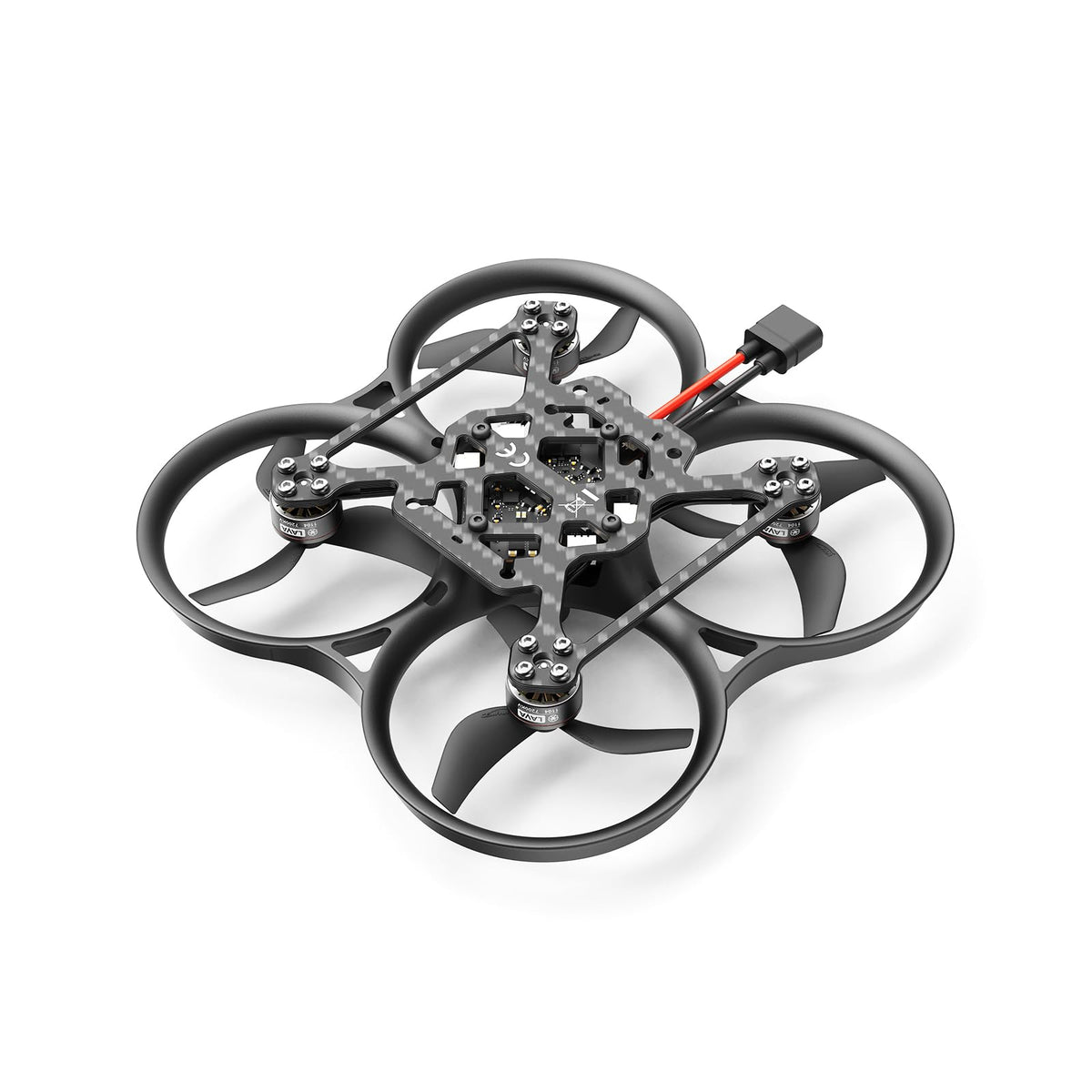

Crafted for fast, secure builds, the frame uses embedded nuts and only four screws. An advanced molding process ensures the carbon plates align perfectly via three guided points, delivering an ultra rigid platform that helps maintain stability during bold maneuvers.

HD VTX compatibility and O4 Pro readiness

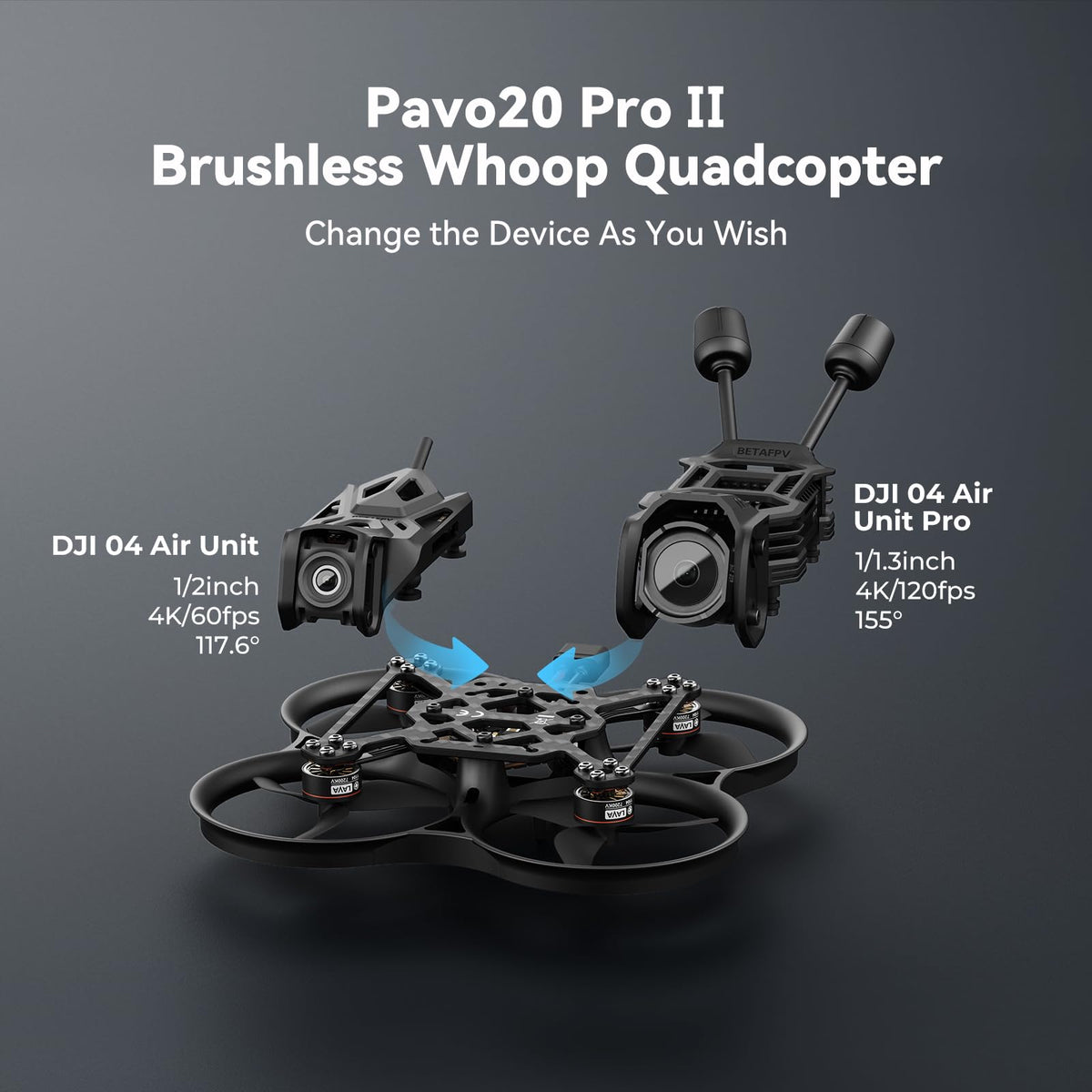

The redesigned carbon plate expands compatibility to support both the O4 Air Unit Pro and the O4 Air Unit. Pre‑tuned PID parameters are optimized for both O4 configurations, so you can switch setups via the on‑screen display and fly with confidence.

Its O4 Pro friendly design means you can pursue crisper HD footage without swapping components. This setup aims to keep your flight smooth and predictable when you swap between configurations.

Bracket for O4 Pro and camera protection

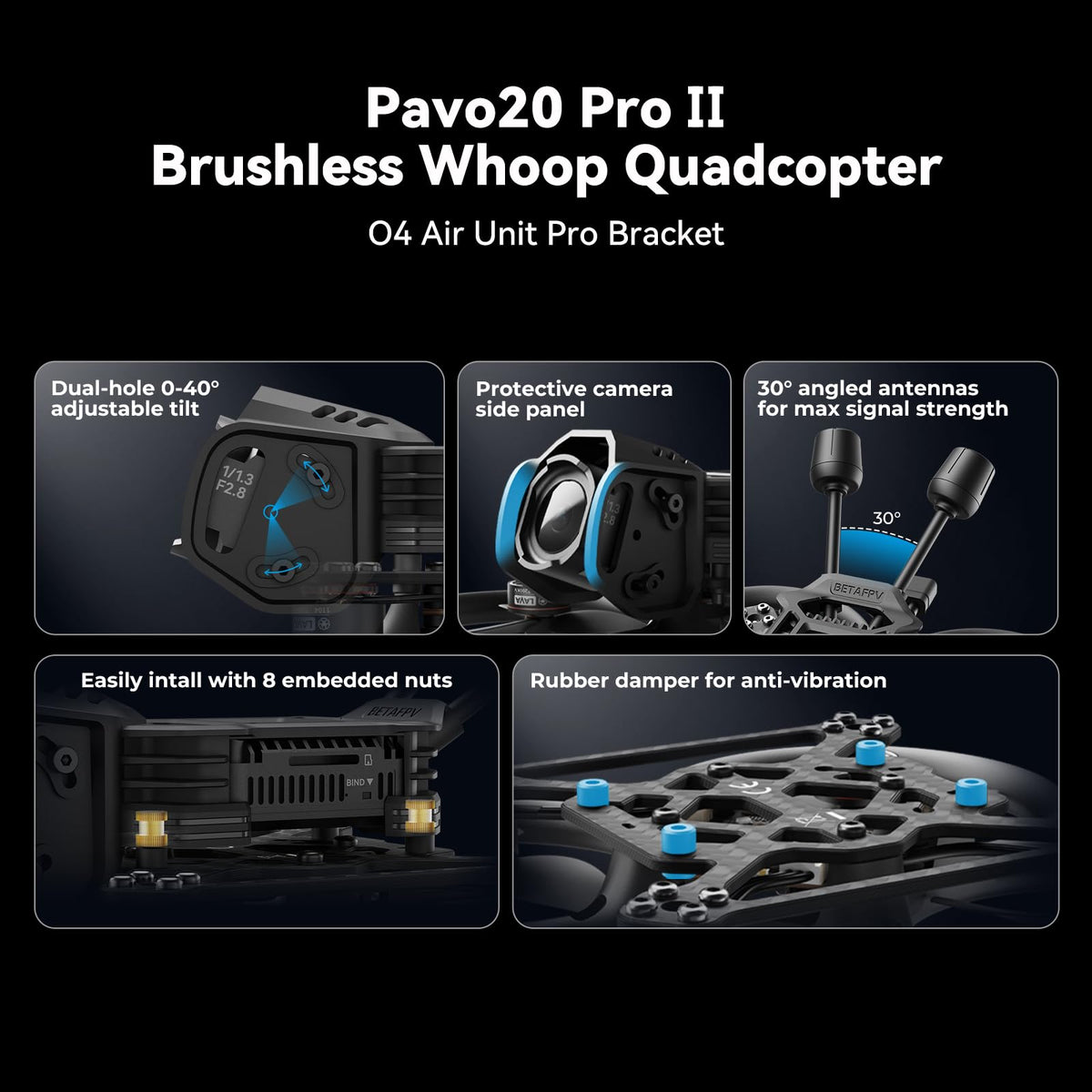

The integrated HD VTX Bracket for O4 Pro features a reinforced camera side panel and precise tilt adjustments. The center of rotation is optimized for stable camera movement, with tilt ranging from 0 to 40 degrees. Angled antenna mounts help maintain signal strength, while a tool‑free installation makes antenna swaps quick. The bracket is securely assembled with eight half‑thread screws to minimize vibration and improve overall rigidity.

Power and propulsion for freestyle

For lively, responsive performance, the Pavo20 Pro II uses Gemfan 2218 three‑blade propellers paired with LAVA 1104 7200KV brushless motors. This power setup supports explosive acceleration and agile handling, complemented by a LAVA 3S 550 mAh 75C battery that can yield up to about 6.5 minutes of flight time under suitable conditions.

Flight controller and power management

The Pavo20 Pro II includes an F4 2‑3S 20A AIO FC designed specifically for HD VTX use. A dual BEC solution provides stable outputs of 9V 2A for the O4 system and 5V 3A for external devices. With 20A ESCs, the system delivers agile control, while dedicated 6‑pin HD VTX connectors and accessible USB ports simplify installation and maintenance.

Why pilots choose it

This frame targets versatility in real‑world filming and freestyle sessions. The combination of a rigid build, HD VTX readiness, and a streamlined assembly process helps pilots focus on flight lines and creative shots without sacrificing reliability.

• 93.9 mm wheelbase with crash‑proof ducts for durable, confident flights
• Embedded nuts and four‑screw assembly for fast, secure builds
• Three guided points for precise carbon plate alignment and rigidity
• Compatibility with O4 Pro and O4 Air Unit for HD footage
• OSD‑driven configuration switching between HD setups

• Gemfan 2218 propellers and LAVA 1104 7200KV motors for sharp, responsive power
• LAVA 3S 550 mAh 75C battery delivering up to 6.5 minutes of flight time
• F4 2-3S 20A AIO FC with dual BEC and 6‑pin HD VTX connectors
• Tool‑free antenna swaps and eight half‑thread screws for reduced setup time
• Compact, reliable hardware designed for HD FPV workflows
