ANNIMOS DS3245SG 45kg High Torque Servo – 180° Coreless, IP67 Waterproof, Stainless Steel Gear for 1/8–1/12 RC Cars

Overview

The ANNIMOS DS3245SG is a high torque servo designed to meet the demands of serious RC builds and robotics projects. Built around a coreless motor and a robust stainless steel gear train, this unit aims for fast, precise responses while standing up to challenging conditions. Its compact, low-profile form helps fit into chassis with tight clearances, and the 180° rotation range offers versatile steering and actuation possibilities.

Key strengths that matter in the field

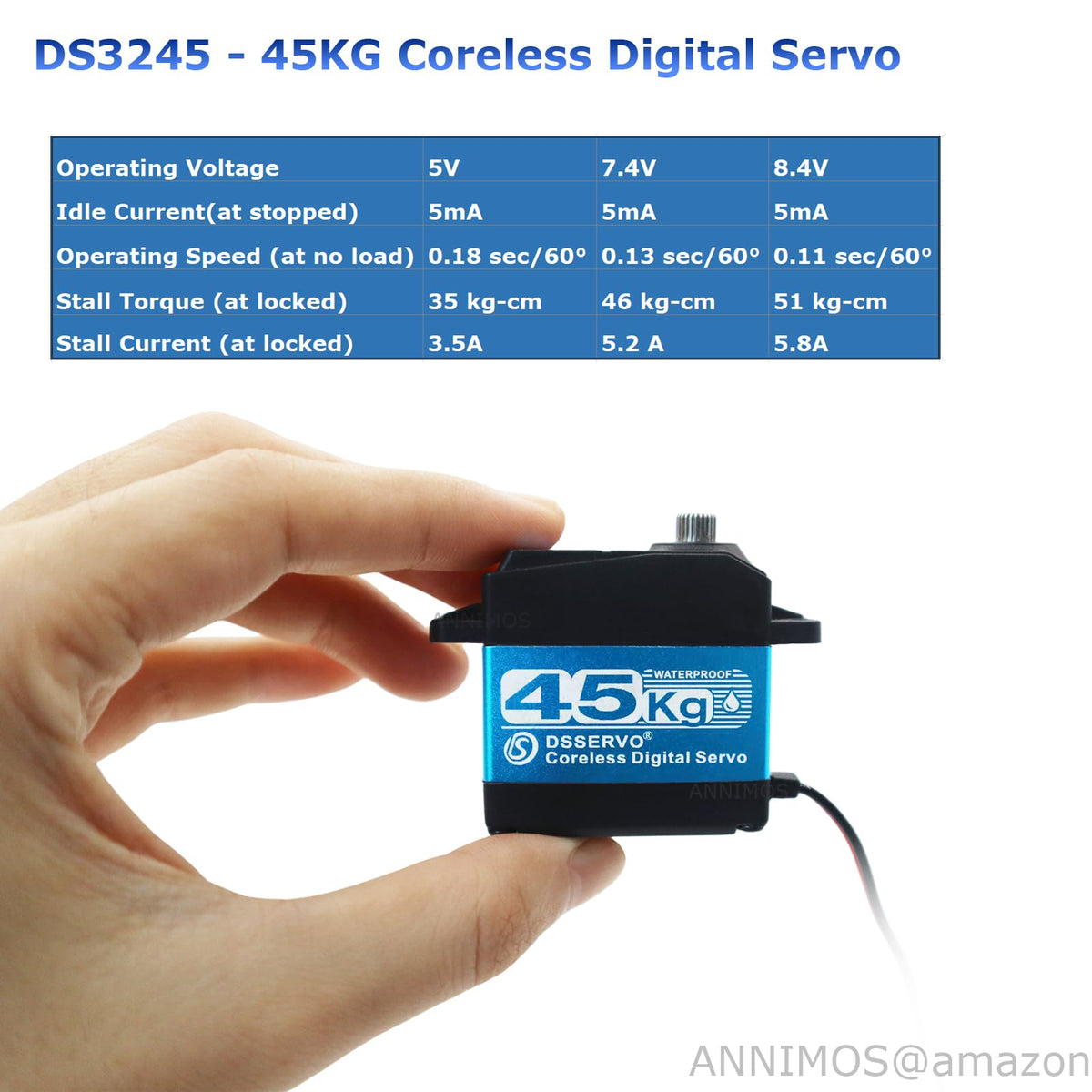

• Powerful torque: Up to 51 kg.cm at 8.4V, enabling strong, consistent steering in larger RC models and precise joint actuation in robotic setups.
• Fast response: No-load speeds as quick as 0.11 sec/60° at 8.4V, supporting quick adjustments during dynamic runs.
• Rugged construction: IP67 waterproof rating with waterproof seals, plus double bearings and stainless steel gears for longer life in dusty or wet environments.
• Precise control: PWM control (500–2500 μs) with a neutral position near 1500 μs and a broad rotation range up to 270° (180° when driven), plus a 25T spline for secure mounting.

Real‑world uses and scenarios

Designed for 1/8, 1/10, and 1/12 scale RC cars and crawlers, the DS3245SG can power steering linkages, robot joints, or small mechanical arms. It’s a practical upgrade where heavier loads, quick response, and dependable sealing matter. The included 25T servo horn and accessories simplify mounting in busy builds, and the long 450 mm wire offers routing flexibility in compact interiors.

• In off‑road rigs, it helps deliver robust steering under load while resisting dust and moisture.
• In robotics projects, it serves as a reliable joint actuator with repeatable positioning across cycles.

Quality and engineering you can feel

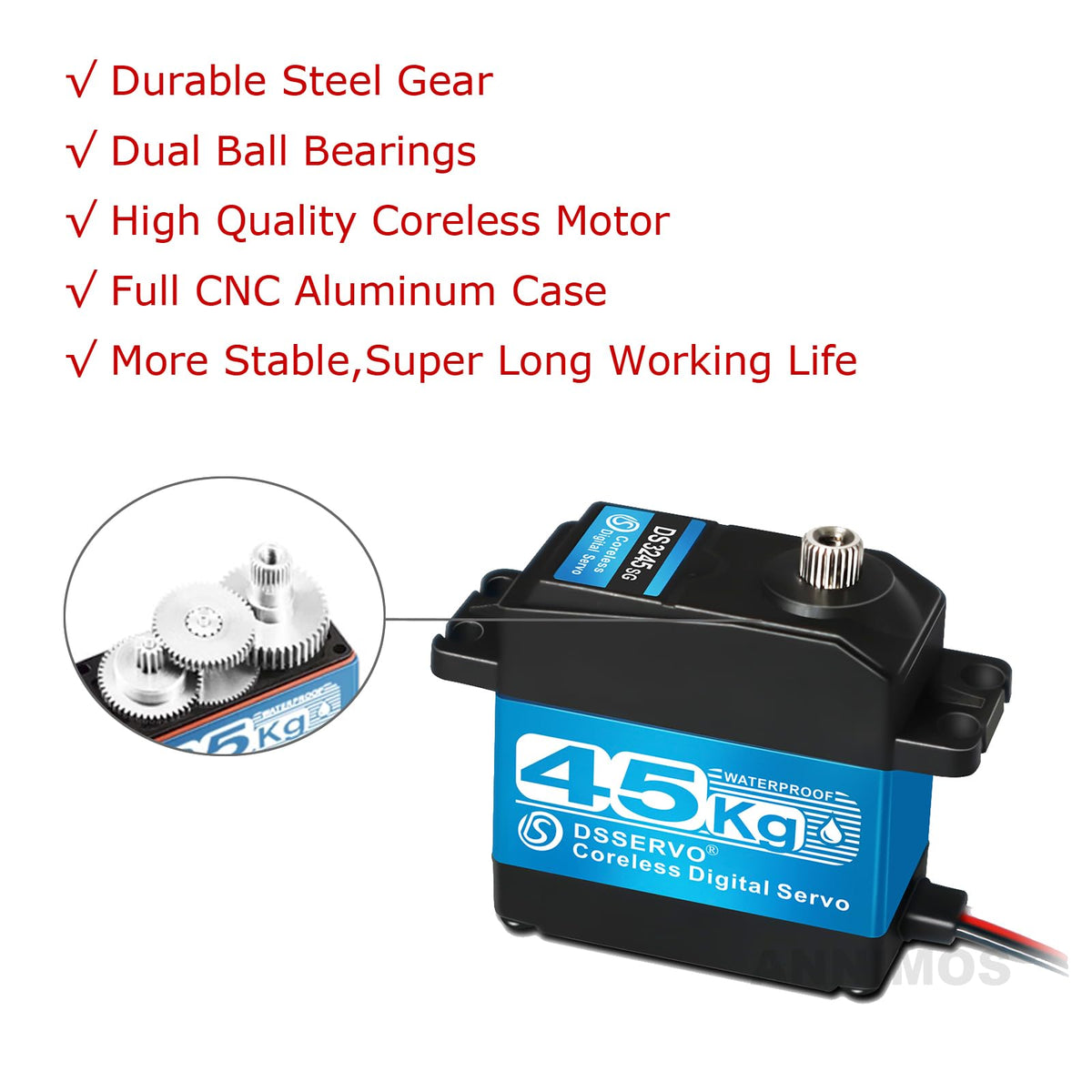

Quality starts with materials and finishes: high‑precision steel gears, a digital control chip, and CNC aluminum mid‑shell contribute to stable performance and heat management. The combination of sturdy gearing and precise potentiometers can translate to smoother motion and longer service life in demanding sessions.

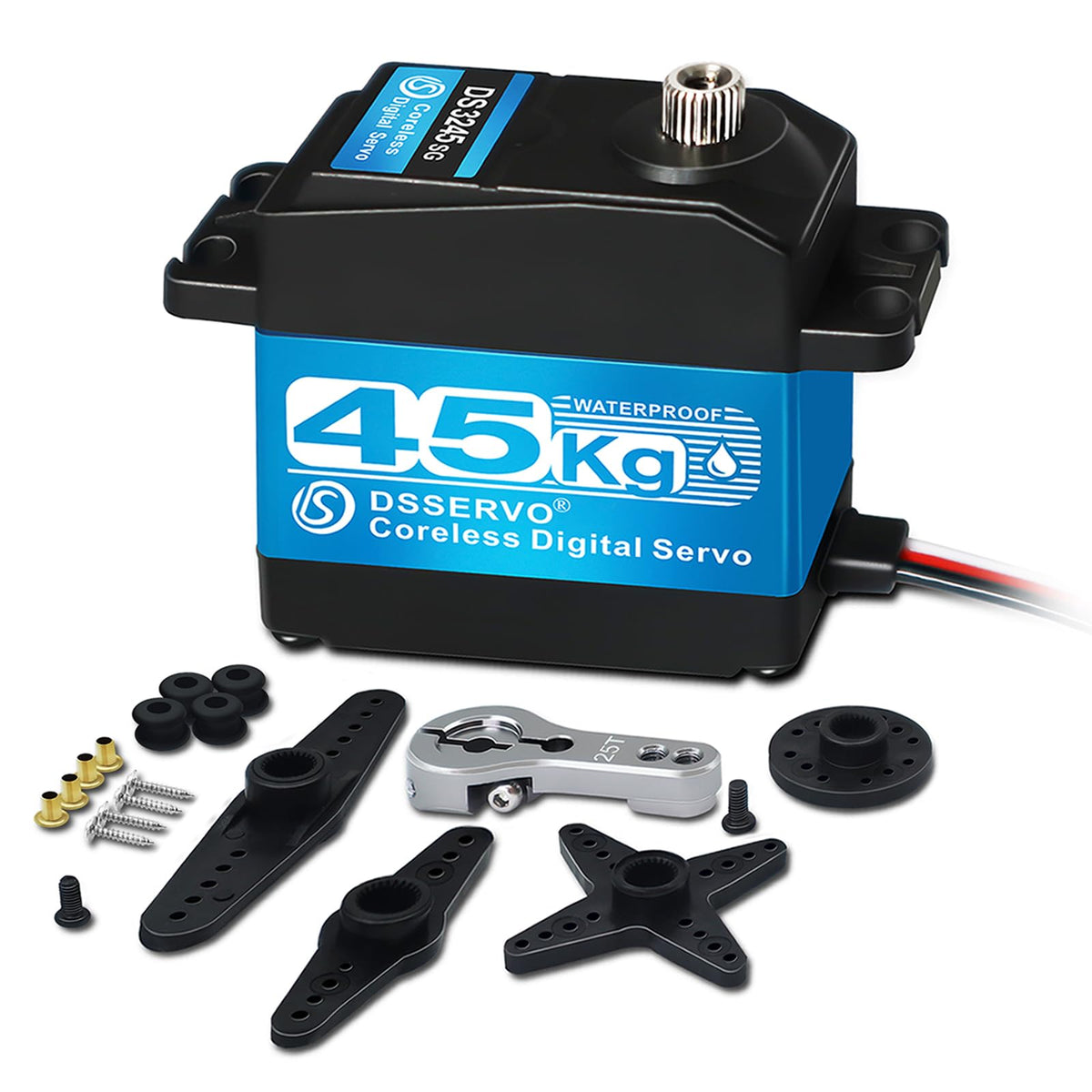

What you get and installation notes

• 1 x DS3245SG 45kg servo (180°)
• 1 x 25T adjustable servo arm
• Accessories set as pictured

Operational ranges account for environmental conditions: storage from −30°C to 80°C and operating from −25°C to 70°C, making it suitable for diverse environments and seasonal use.
